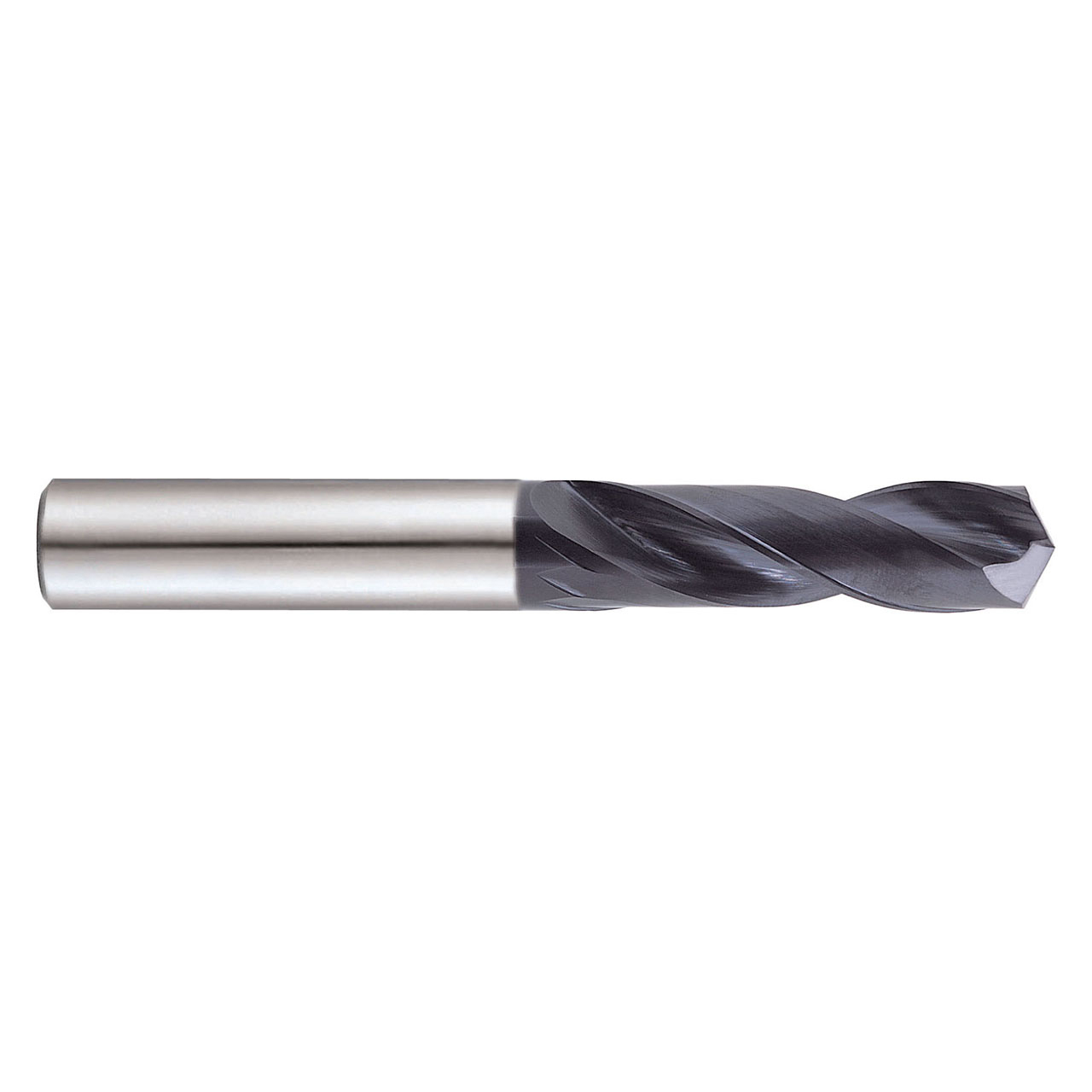

| Manufacturer Part Number | DTX404069 |
| Cutting Diameter (Inch) | 22/81" |
| Cutting Diameter (Decimal Inch) | 0.271" |
| Cutting Diameter (mm) | 6.90mm |
| Shank Diameter (Inch) | 1/2" |
| Flute Length (Inch) | 1-21/62" |
| Flute Length (Decimal Inch) | 1.338" |
| Flute Length (mm) | 34.00mm |
| Overall Length (Inch) | 2-21/23" |
| Overall Length (Decimal Inch) | 2.913" |
| Overall Length (mm) | 74.00mm |
| Point Length (Decimal Inch) | 0.049" |
| Point Length (mm) | 1.26mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Coolant Pressure | 20 Bar |
| Cutting Direction | Right Hand |
| Coating | RCH Coated |
| Material | Carbide |
| Product Type | Dream Drill |
