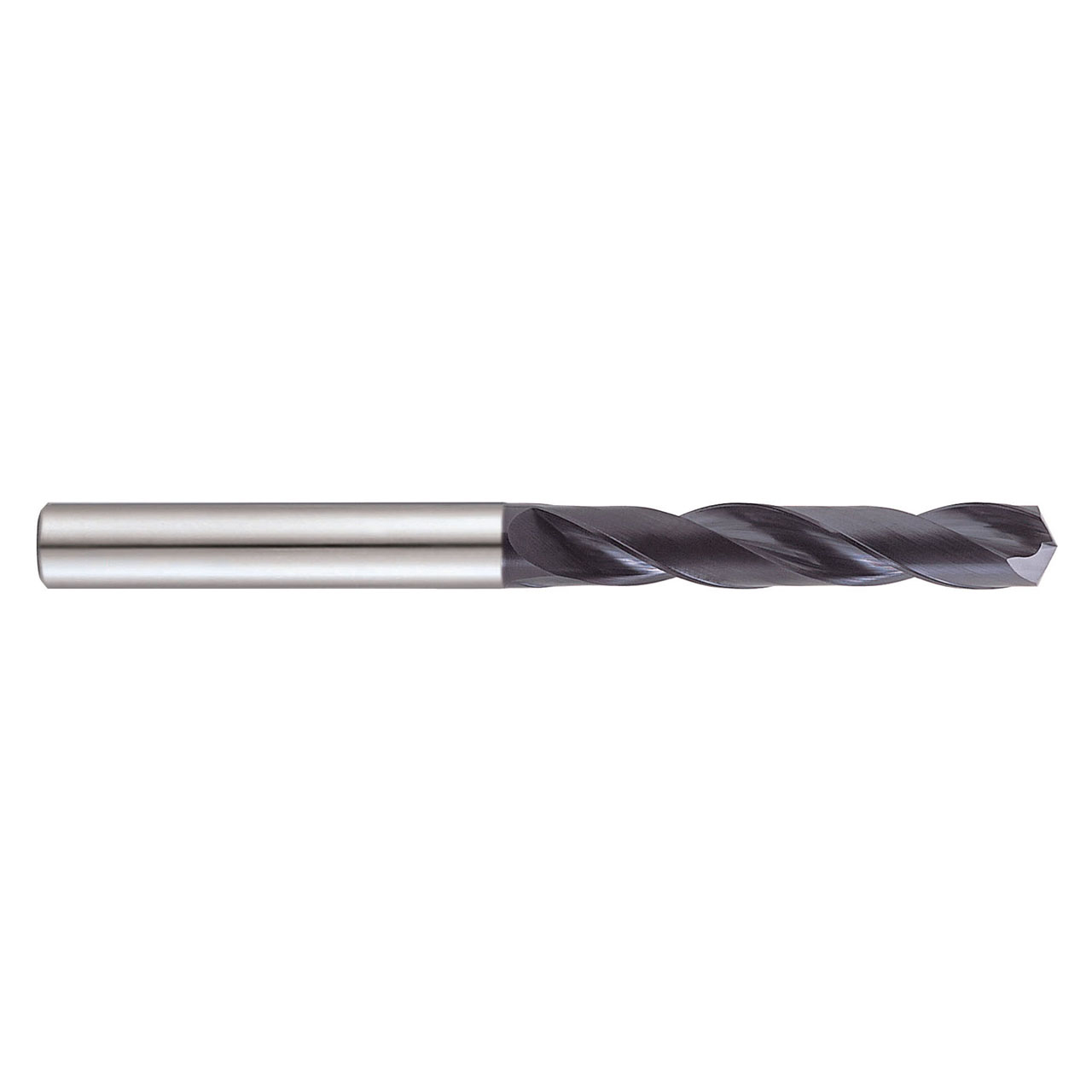

Product Specifications
| Manufacturer Part Number | DTX414013 |
| Cutting Diameter (Inch) | 13/64" |
| Cutting Diameter (Decimal Inch) | 0.203" |
| Cutting Diameter (mm) | 5.16mm |
| Shank Diameter (Inch) | 13/64" |
| Shank Diameter (Decimal Inch) | 0.203" |
| Shank Diameter (mm) | 5.16mm |
| Flute Length (Inch) | 1" |
| Flute Length (Decimal Inch) | 1.000" |
| Flute Length (mm) | 25.40mm |
| Overall Length (Inch) | 2-7/16" |
| Overall Length (Decimal Inch) | 2.437" |
| Overall Length (mm) | 61.91mm |
| Point Length (Decimal Inch) | 0.037" |
| Point Length (mm) | 0.94mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Coolant Pressure | 20 Bar |
| Cutting Direction | Right Hand |
| Coating | RCH Coated |
| Material | Carbide |
| Product Type | Dream Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
13/64"
Cutting Diameter (Decimal Inch):
0.2030"
Cutting Diameter (mm):
5.16mm
Shank Diameter (Inch):
13/64"
Shank Diameter (Decimal Inch):
0.2030"
Shank Diameter (mm):
5.16mm
Flute Length (Inch):
1"
Flute Length (Decimal Inch):
1.0000"
Flute Length (mm):
25.40mm
Overall Length (Inch):
2-7/16"
Overall Length (Decimal Inch):
2.4370"
Overall Length (mm):
61.91mm
Point Length (Inch):
1/27"
Point Length (Decimal Inch):
0.0370"
Point Length (mm):
0.94mm
Cutting Direction:
Right Hand
Shank Tolerance:
h6
Number of Flutes:
2
Finish/Coating:
RCH Coated
Material:
Carbide
interval quantity:
1
