Product Specifications
| Manufacturer Part Number | DTX414014 |
| Cutting Diameter (Inch) | 7/32" |
| Cutting Diameter (Decimal Inch) | 0.218" |
| Cutting Diameter (mm) | 5.56mm |
| Shank Diameter (Inch) | 7/32" |
| Shank Diameter (Decimal Inch) | 0.218" |
| Shank Diameter (mm) | 5.56mm |
| Flute Length (Inch) | 1-1/8" |
| Flute Length (Decimal Inch) | 1.125" |
| Flute Length (mm) | 28.58mm |
| Overall Length (Inch) | 2-5/8" |
| Overall Length (Decimal Inch) | 2.625" |
| Overall Length (mm) | 66.68mm |
| Point Length (Decimal Inch) | 0.039" |
| Point Length (mm) | 1.01mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Coolant Pressure | 20 Bar |
| Cutting Direction | Right Hand |
| Coating | RCH Coated |
| Material | Carbide |

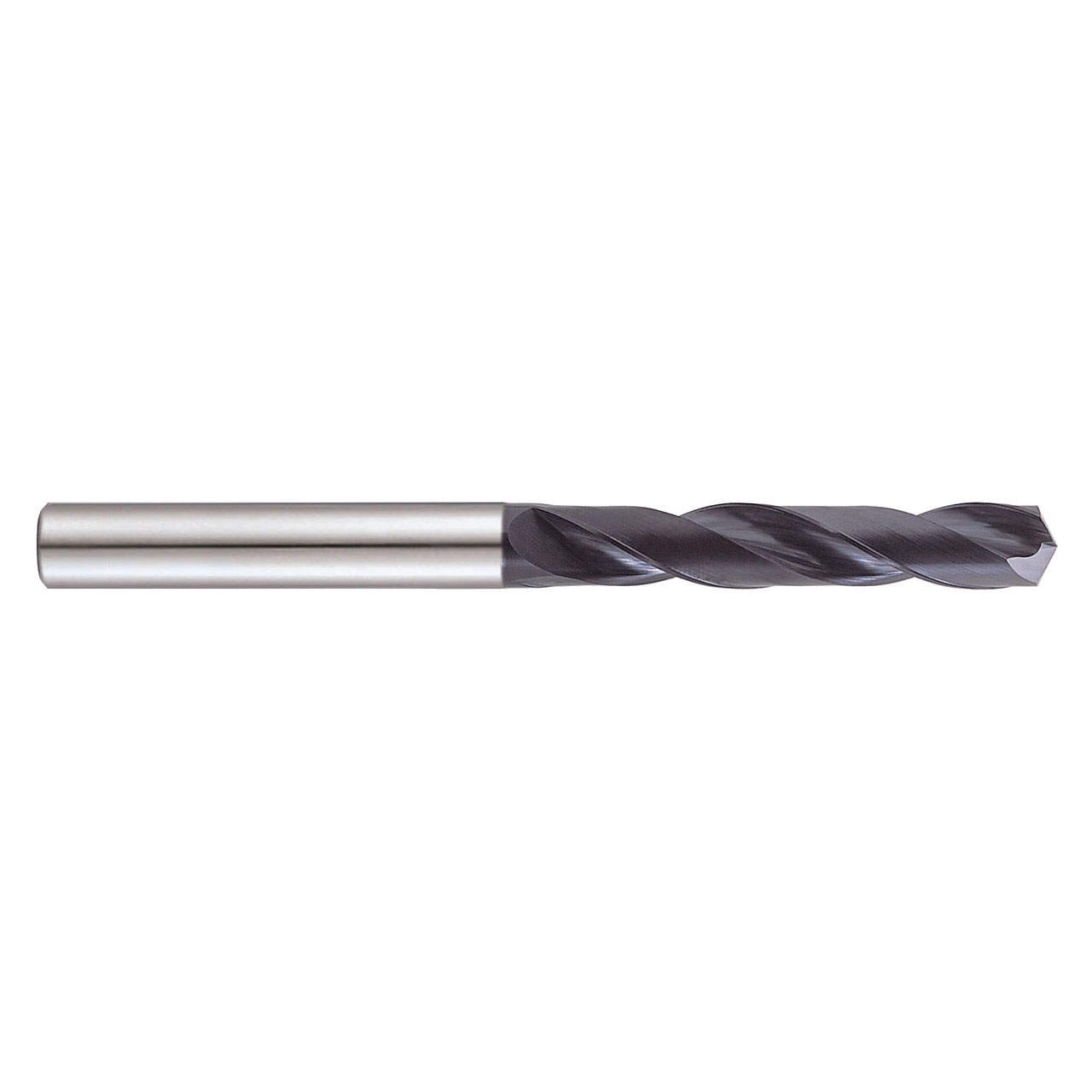

| Product Type | Dream Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
7/32"
Cutting Diameter (Decimal Inch):
0.2180"
Cutting Diameter (mm):
5.56mm
Shank Diameter (Inch):
7/32"
Shank Diameter (Decimal Inch):
0.2180"
Shank Diameter (mm):
5.56mm
Flute Length (Inch):
1-1/8"
Flute Length (Decimal Inch):
1.1250"
Flute Length (mm):
28.58mm
Overall Length (Inch):
2-5/8"
Overall Length (Decimal Inch):
2.6250"
Overall Length (mm):
66.68mm
Point Length (Inch):
3/77"
Point Length (Decimal Inch):
0.0390"
Point Length (mm):
1.01mm
Cutting Direction:
Right Hand
Shank Tolerance:
h6
Number of Flutes:
2
Finish/Coating:
RCH Coated
Material:
Carbide
interval quantity:
1
