| Manufacturer Part Number | DTX414036 |
| Cutting Diameter (Decimal Inch) | 0.562" |
| Cutting Diameter (mm) | 14.29mm |
| Shank Diameter (Decimal Inch) | 0.562" |
| Shank Diameter (mm) | 14.29mm |
| Flute Length (Decimal Inch) | 3.500" |
| Flute Length (mm) | 88.90mm |
| Overall Length (Decimal Inch) | 5.937" |
| Overall Length (mm) | 150.81mm |
| Point Length (Decimal Inch) | 0.102" |
| Point Length (mm) | 2.60mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Coolant Pressure | 20 Bar |
| Cutting Direction | Right Hand |
| Coating | RCH Coated |
| Material | Carbide |

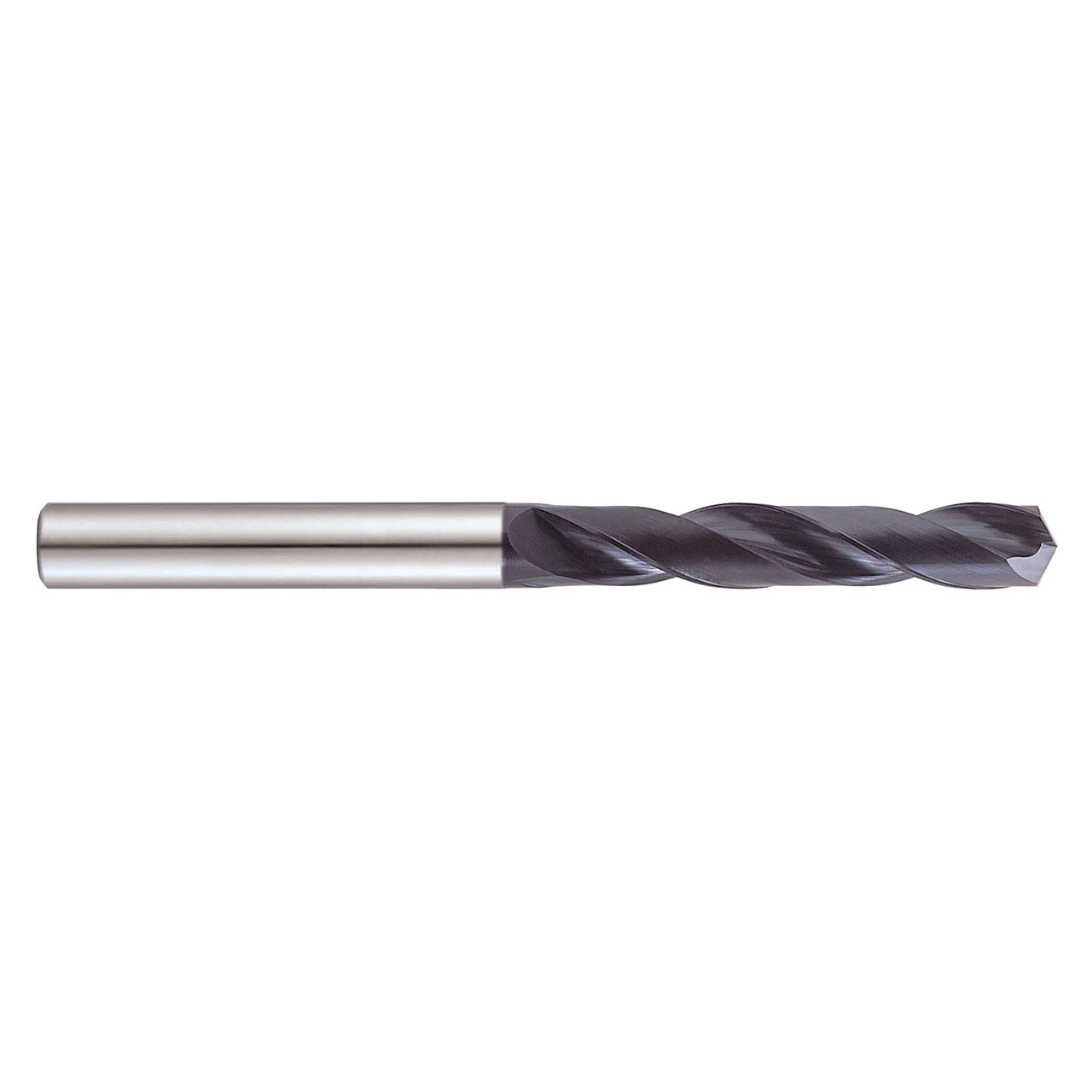

| Product Type | Dream Drill |
