| Manufacturer Part Number | DTX418221 |
| Size (Letter) | U |
| Diameter (Inch) | 7/19" |
| Diameter (Decimal Inch) | 0.368" |
| Diameter (mm) | 9.35mm |
| Shank Diameter (Inch) | 25/64" |
| Shank Diameter (Decimal Inch) | 0.391" |
| Shank Diameter (mm) | 9.92mm |
| Flute Length (Inch) | 3" |
| Flute Length (Decimal Inch) | 3.000" |
| Flute Length (mm) | 76.20mm |
| Overall Length (Inch) | 5-23/64" |
| Overall Length (Decimal Inch) | 5.359" |
| Overall Length (mm) | 136.13mm |
| Point Length (Decimal Inch) | 0.067" |
| Point Length (mm) | 1.70" |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Shank Tolerance | h6 |
| Series | DTX418 |
| Coolant Through | Yes |
| Coolant Pressure | 20 Bar |
| Coating | RCH |
| Material | Carbide |
| Cutting Direction | Right Hand |

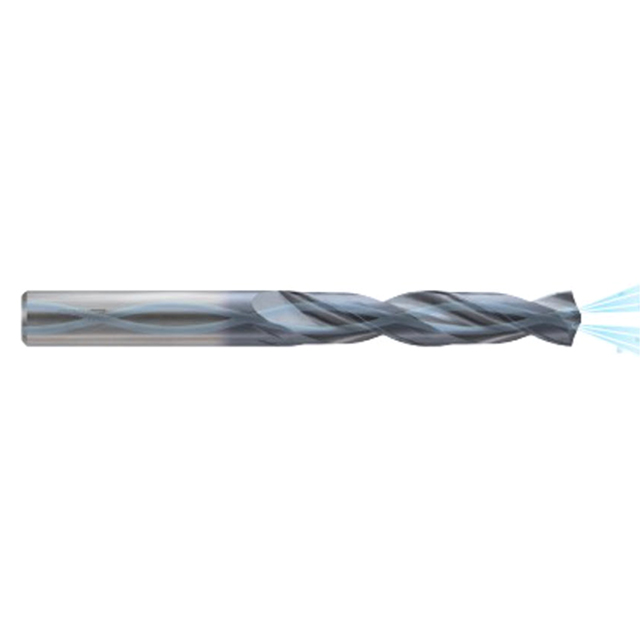

| Product Type | Dream Drill with Coolant Hole |
