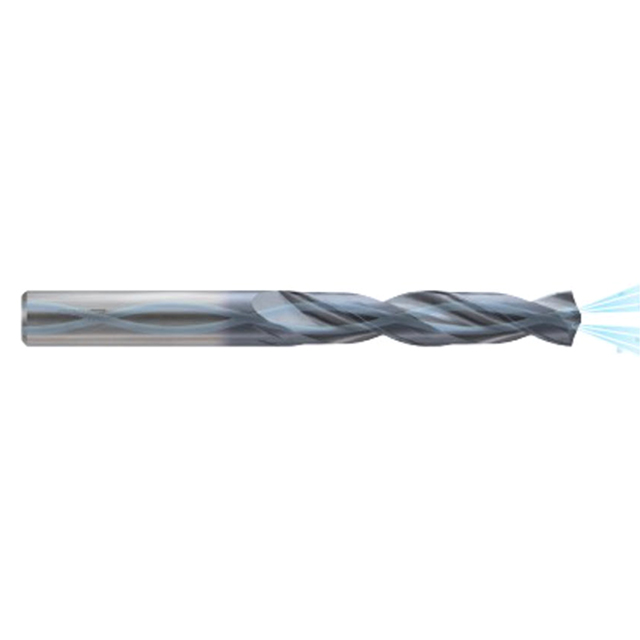

| Manufacturer Part Number | DTX424071 |
| Diameter (Inch) | 26/93" |
| Diameter (Decimal Inch) | 0.280" |
| Diameter (mm) | 7.10mm |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (Decimal Inch) | 0.315" |
| Shank Diameter (mm) | 8.00mm |
| Flute Length (Inch) | 2-2/23" |
| Flute Length (Decimal Inch) | 2.087" |
| Flute Length (mm) | 53.00mm |
| Overall Length (Inch) | 3-7/12" |
| Overall Length (Decimal Inch) | 3.583" |
| Overall Length (mm) | 91.00mm |
| Point Length (Decimal Inch) | 0.051" |
| Point Length (mm) | 1.29" |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Shank Tolerance | h6 |
| Series | DTX424 |
| Coolant Pressure | 20 Bar |
| Blank Standard | DIN 6537 |
| Coating | RCH |
| Material | Carbide |
| Cutting Direction | Right Hand |
| Product Type | Dream Drill |
