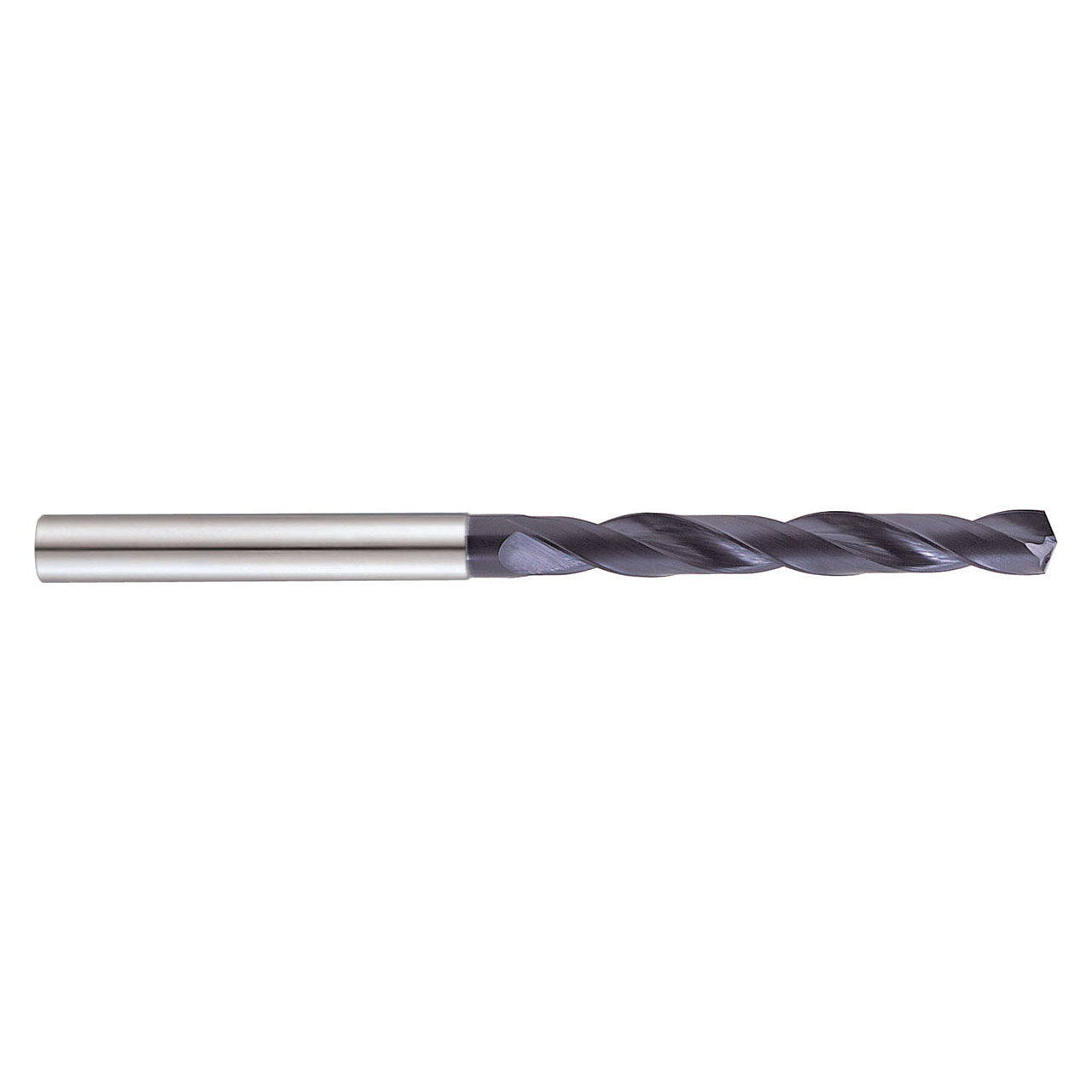

| Manufacturer Part Number | DTX712025 |
| Cutting Diameter (Inch) | 25/64" |
| Cutting Diameter (Decimal Inch) | 0.390" |
| Cutting Diameter (mm) | 9.92mm |
| Shank Diameter (Inch) | 7/16" |
| Shank Diameter (Decimal Inch) | 0.437" |
| Shank Diameter (mm) | 11.11mm |
| Flute Length (Inch) | 3-5/32" |
| Flute Length (Decimal Inch) | 3.156" |
| Flute Length (mm) | 80.17mm |
| Overall Length (Inch) | 5-23/64" |
| Overall Length (Decimal Inch) | 5.359" |
| Overall Length (mm) | 136.13mm |
| Point Length (Decimal Inch) | 0.071" |
| Point Length (mm) | 1.81mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Coolant Pressure | 20 Bar |
| Cutting Direction | Right Hand |
| Coating | RCH Coated |
| Material | Carbide |
| Product Type | Dream Drill |
