| Manufacturer Part Number | E2616 |
| Size | M16 |
| Pitch (TPI) | 1.5 TPI |
| Diameter (Decimal Inch) | 0.6299" |
| Diameter (mm) | 16.00mm |
| Overall Length (Decimal Inch) | 3.8100" |
| Overall Length (mm) | 96.77mm |
| Thread Length (Decimal Inch) | 0.5510" |
| Thread Length (mm) | 14.00mm |
| Square Length (Decimal Inch) | 0.5600" |
| Square Length (mm) | 14.22mm |
| Shank Diameter (Decimal Inch) | 0.4800" |
| Shank Diameter (mm) | 12.19mm |
| Square Size (Decimal Inch) | 0.3600" |
| Square Size (mm) | 12.19mm |
| Neck Diameter (Decimal Inch) | 0.4690" |
| Neck Diameter (mm) | 11.91mm |
| Drill Size (Decimal Inch) | 0.5762" |
| Drill Size (mm) | 14.64mm |
| Useable Length (Decimal Inch) | 2.2050" |
| Useable Length (mm) | 56.01mm |
| Length/Diameter | 2.5xD |
| Number of Flutes | 3 |
| Series | E2 |
| Thread Series | MF |
| Pitch Limit | D6 |
| Chamfer Length | 2P-3P |
| Blank Standard | 302A |
| Coating | Steam Oxide |
| Material | HSSE-V3 |
| Helix Angle (Degree) | 45 Degree |
| Shank Type | Square |
| Trade Name | YG Tap Steel |
| Tap Type | Spiral Flute |
| Chamfer Type | Modified Bottoming |

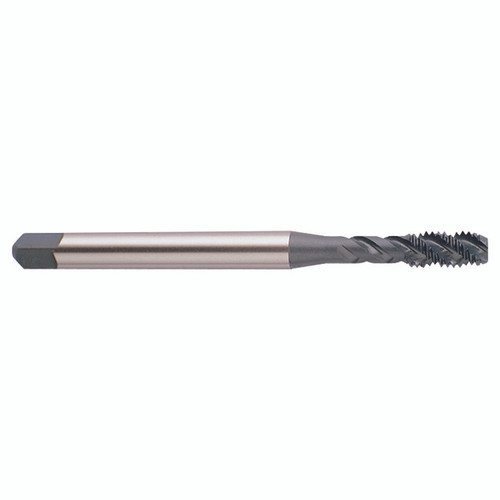

| Product Type | Spiral Flute Modified Bottom Tap |
