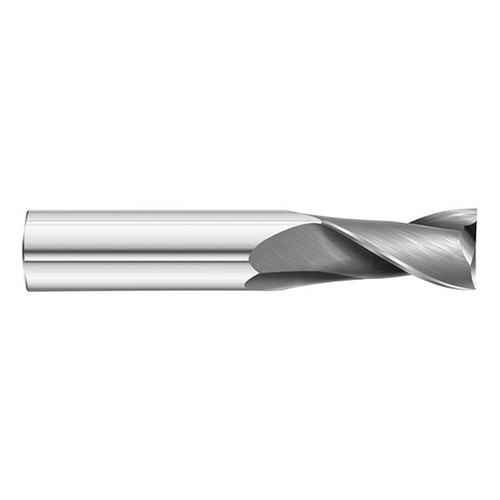

All Industrial E5020014S | 2 Flute Standard Length End Mill, 7/32" Diameter

$22.29 $7.19
(You save $15.10)

This item is discontinued. We don't expect additional inventory in the future. Contact All Industrial for recommendations on alternative products

Ships:
Same Business Day if Ordered by 12:30PM PT
Brand:
All Industrial
Mill Diameter (Inch):
7/32"
Length of Cut (Inch):
5/8"
Shank Diameter (Inch):
1/4"
Overall Length (Inch):
2-1/2"
Material:
Solid Carbide
Finish/Coating:
Uncoated
Single or Double End:
Single
Cutting Direction:
Right Hand
Flute Direction:
Right Hand
Center Cutting:
Yes
Number of Flutes:
2
Ships:
Same Business Day if Ordered by 12:30PM PT
IsDiscontinued:
True
SKU:
25000670
UPC:
300878209902
Weight:
1.00 LBS
Shipping:
Free Shipping

Features

  • High precision solid carbide end mill(s) made from the largest end mill manufacturer in the world!
  • Precision ground using the highest quality grinding wheels
  • Premium 10% Micrograin Carbide- perfect for your general purpose or difficult application!
Product Specifications
Brand All Industrial
Model # E5020014S
Number of Flutes 2
Cutting Diameter (Inch) 7/32"
Length of Cut (Inch)
Overall Length (Inch) 2-1/2"
Finish/Coating Uncoated
Helix 30
Material Solid Carbide
Cutting Direction Right Hand
Center Cutting Yes
Flute Type Spiral
Cutting Diameter Tolerance +0.0000/ -0.0012"
Shank Diameter Tolerance +0.0000/ -0.0005"
