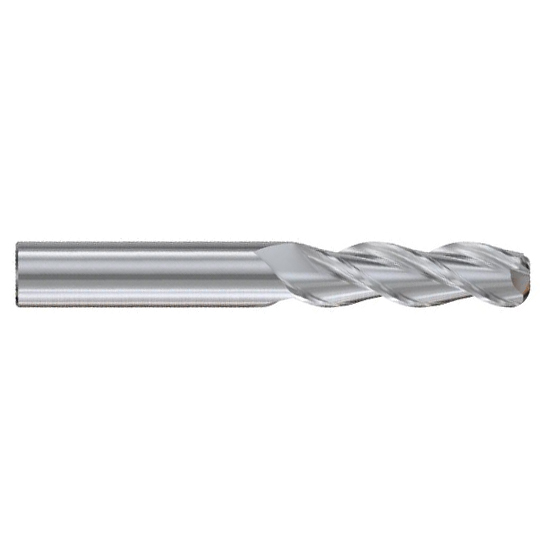

YG1 E5G97865 | 1" Diameter x 1" Shank x 3-1/4" LOC x 6" OAL x 0.010" Radius x 37 Degree Helix Angle 3 Flute Bright Coated Carbide E5G97 Corner Radius End Mill

About This Item

Features

• High performance corner radius end mills providing longer tool life
• Balanced cutting with less vibration
• Ability to run at higher speeds with less heat in aluminum
• More efficient chip evacuation
• Ability to counteract extreme radial forces

Product Specifications

Manufacturer Part Number	E5G97865
Mill Diameter (Inch)	1"
Number of Flutes	3
Length of Cut (Inch)	3-1/4"
Shank Diameter (Inch)	1"
Overall Length (Inch)	6"
Tool Material	Carbide
End Type	Corner Radius
Corner Radius (Decimal Inch)	0.01"
Finish/Coating	Uncoated
Single or Double End	Single
