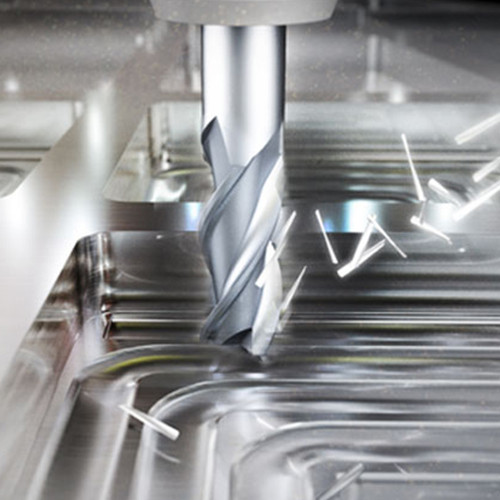

YG1 E5G97917 | 5/16" Diameter x 5/16" Shank x 7/16" LOC x 2" OAL x 0.090" Radius x 37 Degree Helix Angle 3 Flute Bright Coated Carbide E5G97 Corner Radius End Mill

About This Item

Features

• High performance corner radius end mills providing longer tool life
• Balanced cutting with less vibration
• Ability to run at higher speeds with less heat in aluminum
• More efficient chip evacuation
• Ability to counteract extreme radial forces

Product Specifications

Manufacturer Part Number	E5G97917
Mill Diameter (Inch)	5/16"
Number of Flutes	3
Length of Cut (Inch)	7/16"
Shank Diameter (Inch)	5/16"
Overall Length (Inch)	2"
Tool Material	Carbide
End Type	Corner Radius
Corner Radius (Decimal Inch)	0.09"
Finish/Coating	Uncoated
Single or Double End	Single
