Product Specifications

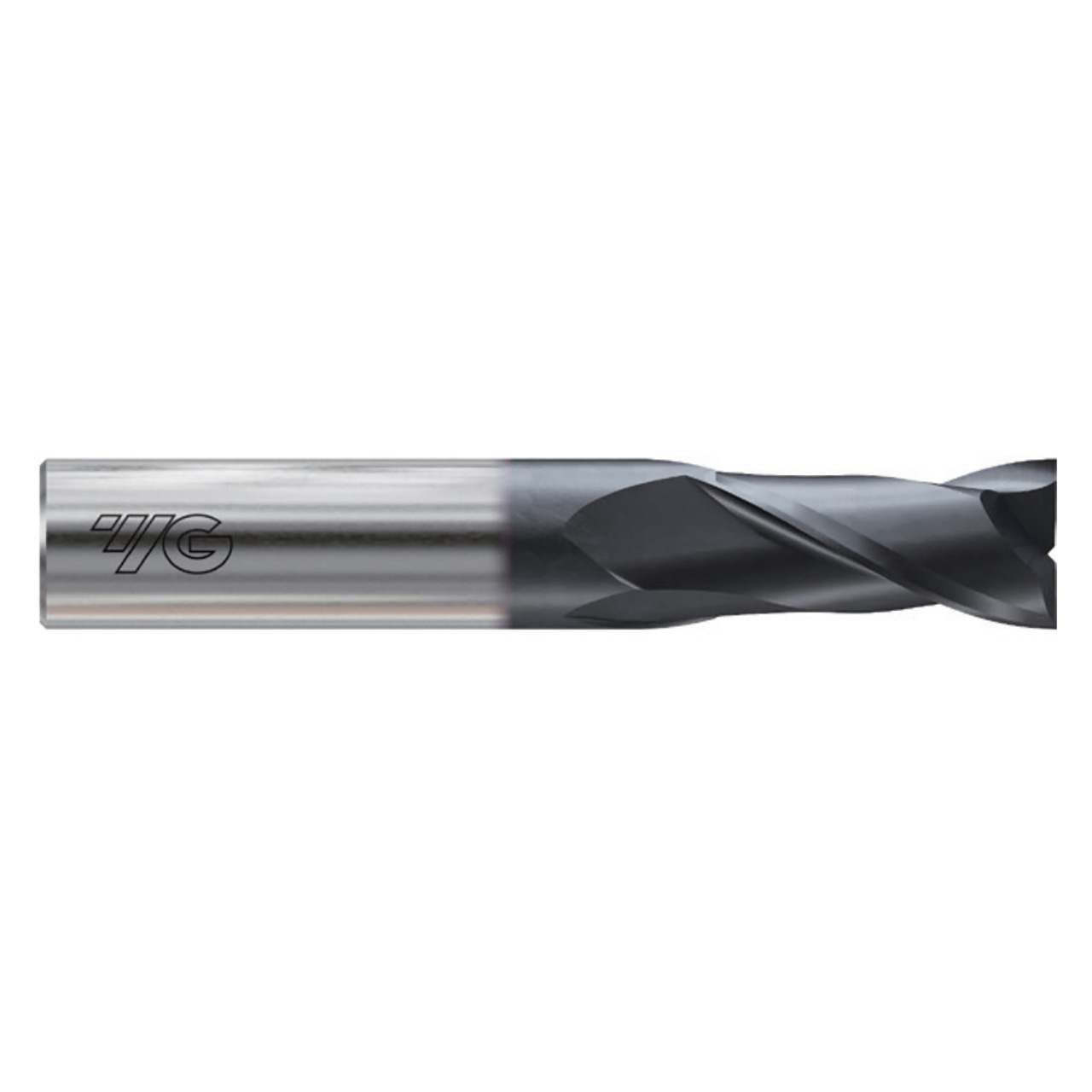

| Manufacturer Part Number | E5H95160 |
| Mill Diameter (Inch) | 17/27" |
| Mill Diameter (Decimal Inch) | 0.6299" |
| Mill Diameter (mm) | 16.00mm |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Inch) | 3" |
| Length of Cut (Decimal Inch) | 2.9921" |
| Length of Cut (mm) | 76.00mm |
| Overall Length (Inch) | 5 62/63" |
| Overall Length (Decimal Inch) | 5.9843" |
| Overall Length (mm) | 152.00mm |
| Helix | 30 Degree |
| Series | E5H95 |
| Coated | Bright |
| Material | Carbide |
| Type | Square Single End |
| Corner Type | Square |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Helix Angle:
30 Degree
Single or Double End:
Single End
