| Manufacturer Part Number | E5H99005 |
| Mill Diameter (Inch) | 5/64" |
| Mill Diameter (Decimal Inch) | 0.078" |
| Mill Diameter (mm) | 1.98mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.125" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Inch) | 1/8" |
| Length of Cut (Decimal Inch) | 0.125" |
| Length of Cut (mm) | 3.18mm |
| Overall Length (Inch) | 1-1/2" |
| Overall Length (Decimal Inch) | 1.500" |
| Overall Length (mm) | 38.10mm |
| Ball Nose Radius (Inch) | 3/77" |
| Ball Nose Radius (Decimal Inch) | 0.039" |
| Ball Nose Radius (mm) | 0.99mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Coating | Bright Coated |
| Material | Carbide |

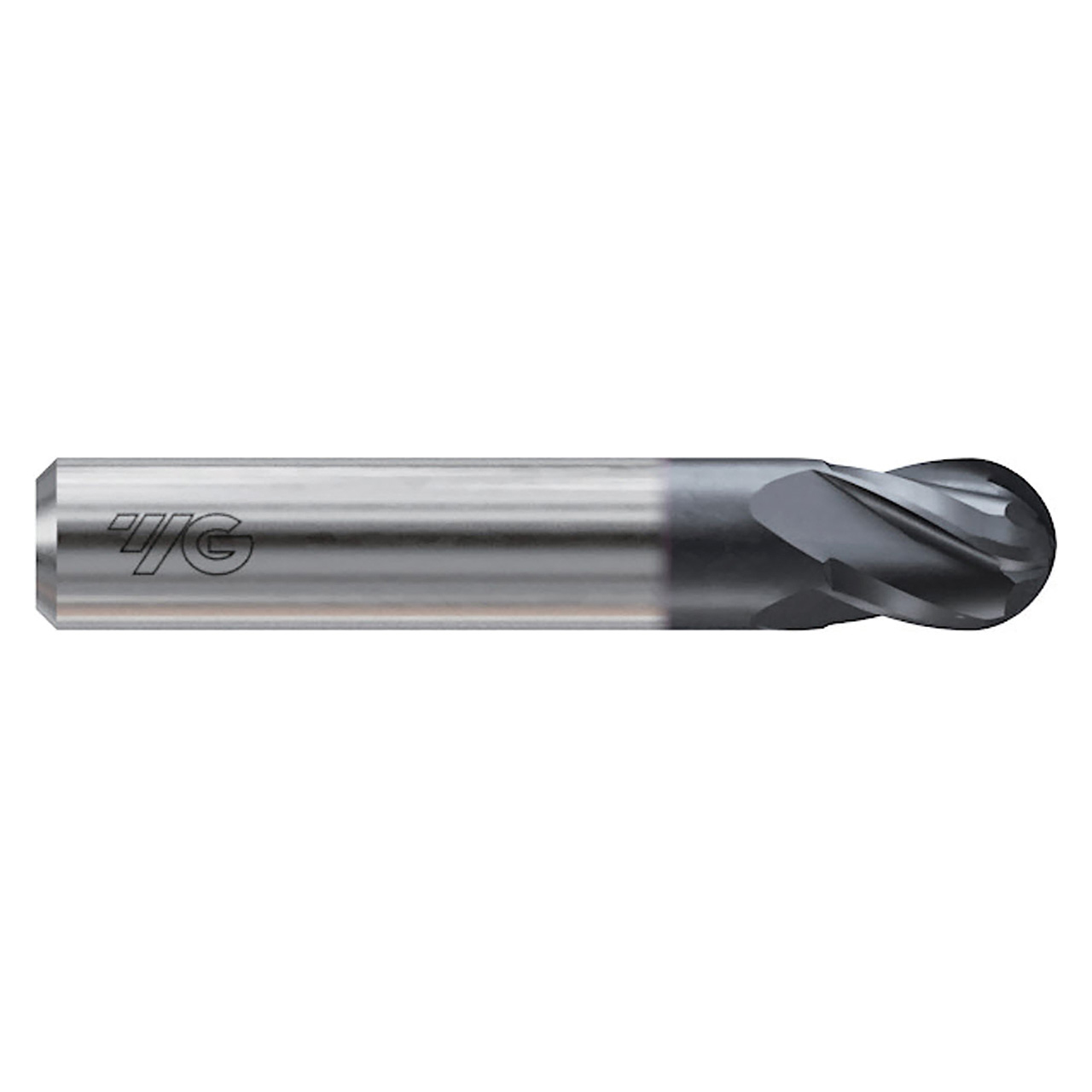

| Product Type | Ball End Mill |
