Product Specifications
| Manufacturer Part Number | E5I01040 |
| Mill Diameter (Inch) | 5/8" |
| Mill Diameter (Decimal Inch) | 0.625" |
| Mill Diameter (mm) | 15.88mm |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (Decimal Inch) | 0.625" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (Decimal Inch) | 0.750" |
| Length of Cut (mm) | 19.05mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.000" |
| Overall Length (mm) | 76.20mm |
| Ball Nose Radius (Inch) | 5/16" |
| Ball Nose Radius (Decimal Inch) | 0.312" |
| Ball Nose Radius (mm) | 7.94mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 30 Degree |
| Coating | Bright Coated |
| Material | Carbide |

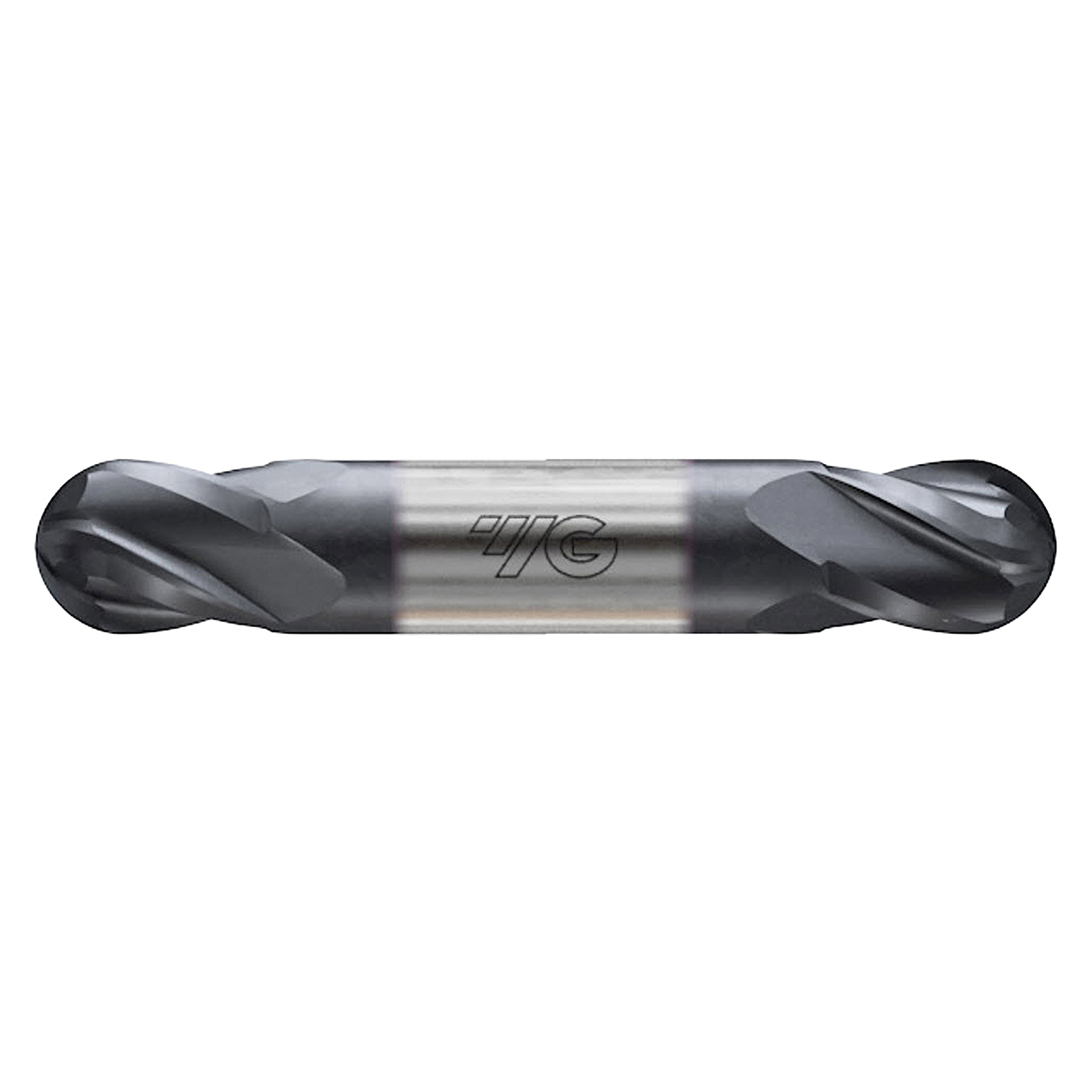

| Product Type | Double Ended Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Cutting Diameter (Inch):
5/8"
Cutting Diameter (Decimal Inch):
0.6250"
Cutting Diameter (mm):
15.88mm
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Length of Cut (Inch):
3/4"
Length of Cut (Decimal Inch):
0.7500"
Length of Cut (mm):
19.05mm
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Number of Flutes:
4
Helix Angle:
30 Degree
Finish/Coating:
Bright Coated
Material:
Carbide
interval quantity:
1
