| Manufacturer Part Number | E5I02016 |
| Mill Diameter (Inch) | 1/4" |
| Mill Diameter (Decimal Inch) | 0.2500" |
| Mill Diameter (mm) | 6.35mm |
| Shank Diameter (Inch) | 1/4" |
| Shank Diameter (Decimal Inch) | 0.2500" |
| Shank Diameter (mm) | 6.35mm |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (Decimal Inch) | 0.7500" |
| Length of Cut (mm) | 19.05mm |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (mm) | 63.50mm |
| Ball Nose (Decimal Inch) | 0.1250" |
| Ball Nose (Inch) | 1/8" |
| Ball Nose (mm) | 3.18mm |
| Helix | 30 Degree |
| Series | E5I02 |
| Coated | Bright |
| Material | Carbide |

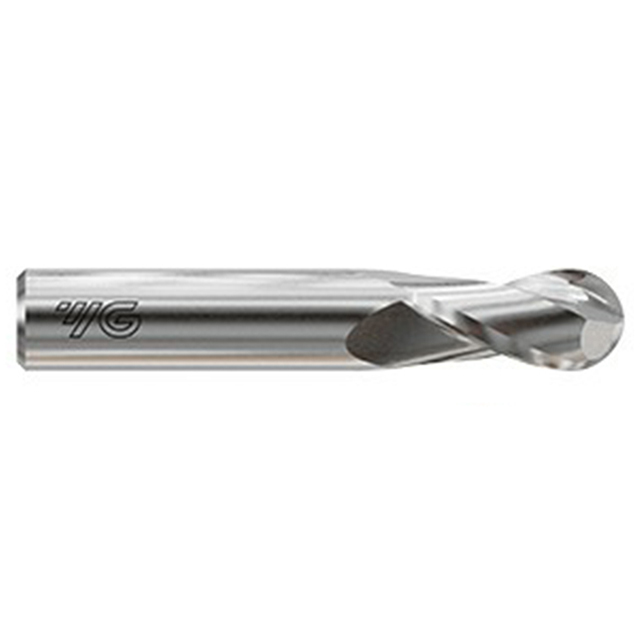

| Type | Ball Nose Single End |
| Corner Type | Ball Nose |
