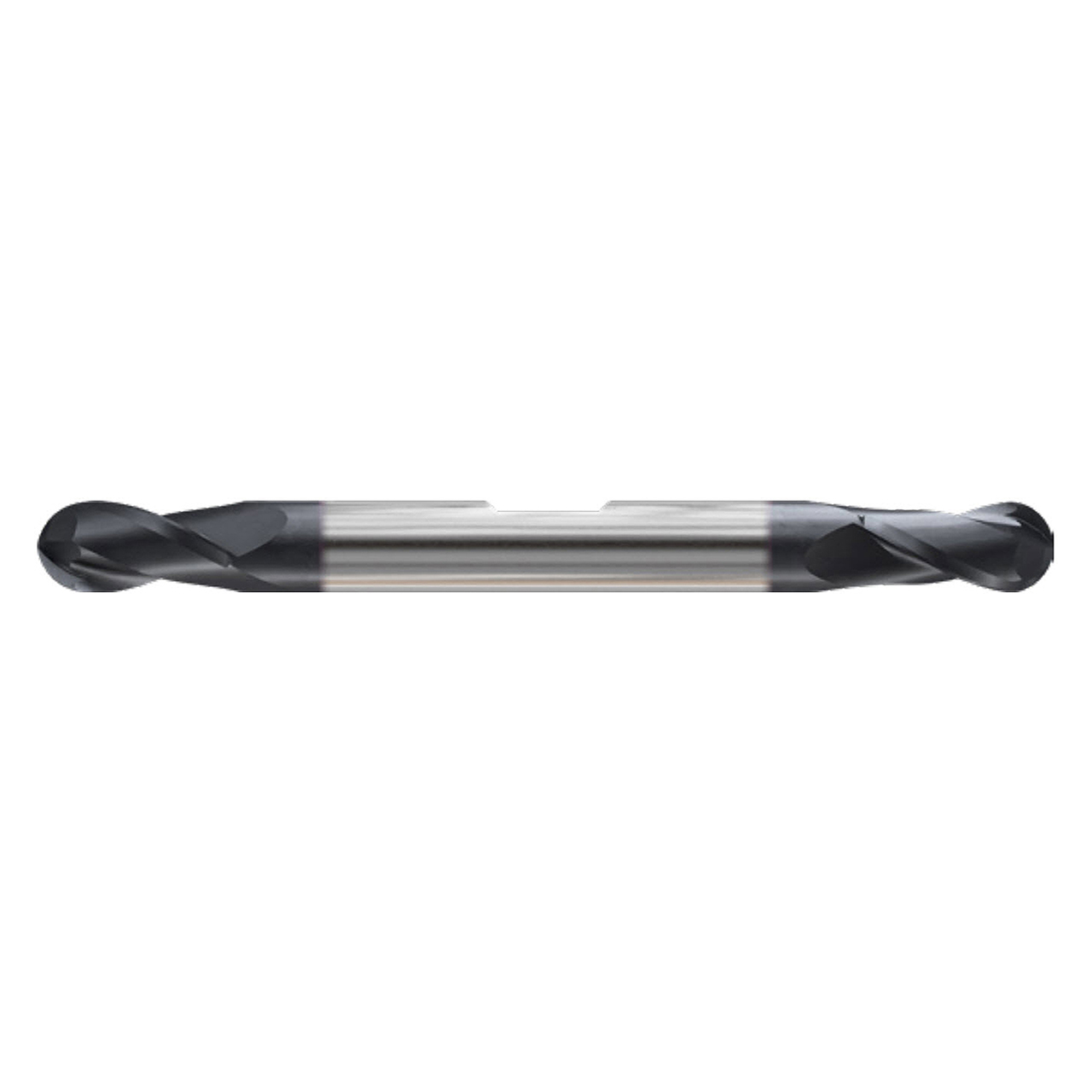

| Manufacturer Part Number | E5I04014 |
| Mill Diameter (Inch) | 7/32" |
| Mill Diameter (Decimal Inch) | 0.2188" |
| Mill Diameter (mm) | 5.56mm |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Inch) | 9/16" |
| Length of Cut (Decimal Inch) | 0.5625" |
| Length of Cut (mm) | 14.29mm |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (mm) | 88.90mm |
| Ball Nose (Decimal Inch) | 0.1094" |
| Ball Nose (Inch) | 7/64" |
| Ball Nose (mm) | 2.78mm |
| Helix | 30 Degree |
| Series | E5I04 |
| Coated | Bright |
| Material | Carbide |
| Type | Ball Nose Double End |
| Corner Type | Ball Nose |
