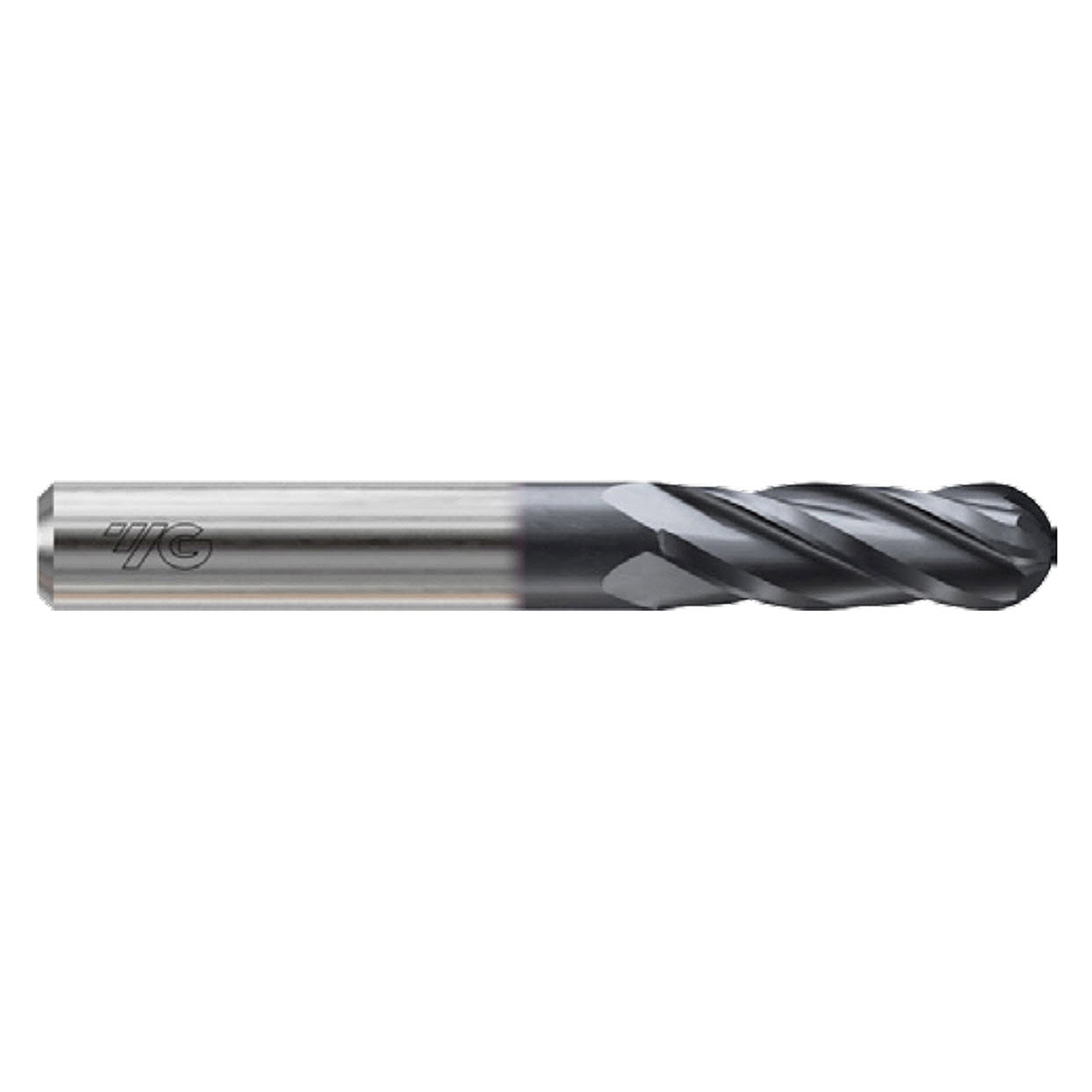

| Manufacturer Part Number | E5I08048 |
| Mill Diameter (Inch) | 3/4" |
| Mill Diameter (Decimal Inch) | 0.7500" |
| Mill Diameter (mm) | 19.05mm |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Inch) | 2-1/4" |
| Length of Cut (Decimal Inch) | 2.2500" |
| Length of Cut (mm) | 57.15mm |
| Overall Length (Inch) | 5" |
| Overall Length (Decimal Inch) | 5.0000" |
| Overall Length (mm) | 127.00mm |
| Ball Nose (Decimal Inch) | 0.3750" |
| Ball Nose (Inch) | 3/8" |
| Ball Nose (mm) | 9.53mm |
| Helix | 30 Degree |
| Series | E5I08 |
| Coated | Bright |
| Material | Carbide |
| Type | Ball Nose Single End |
| Corner Type | Ball Nose |
