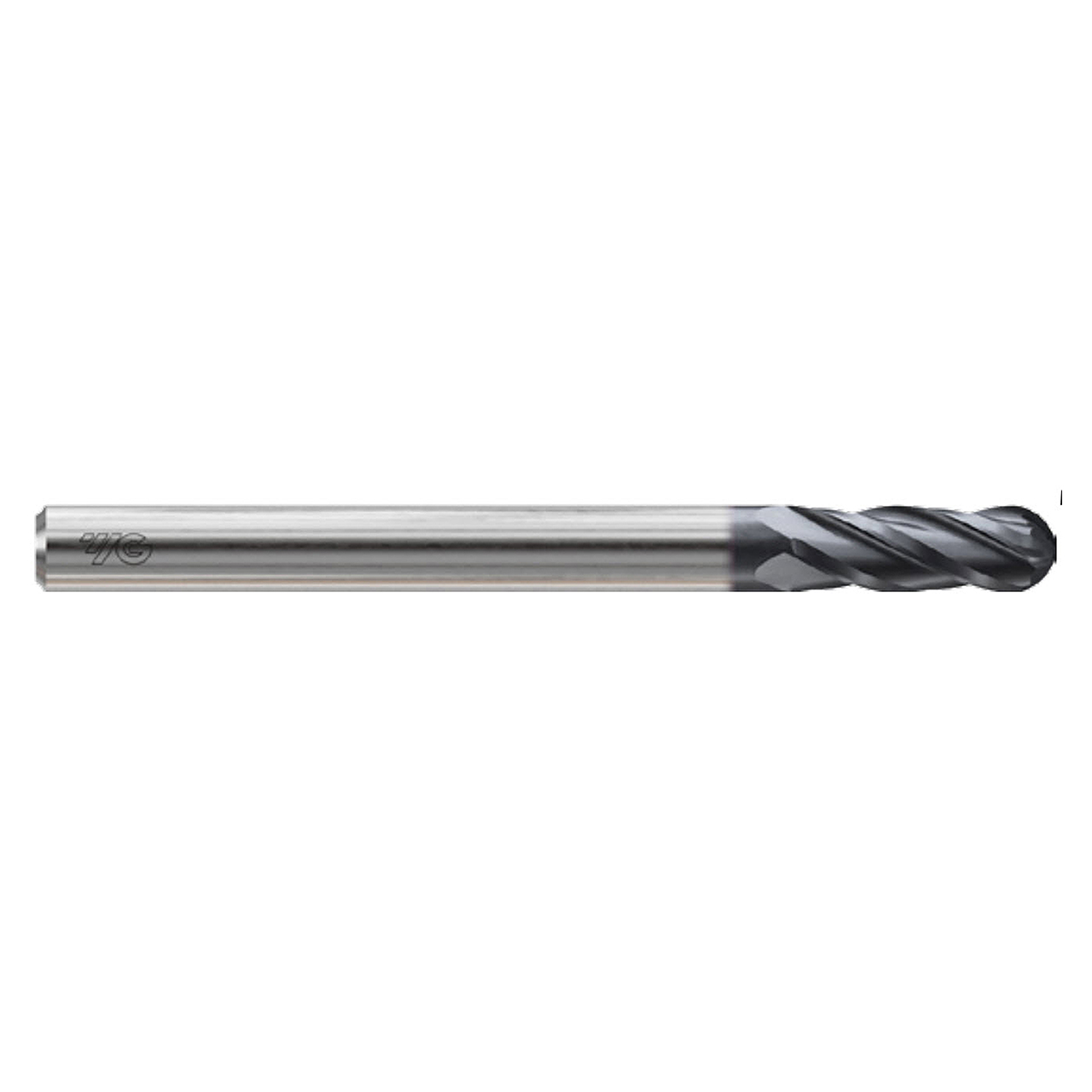

Product Specifications
| Manufacturer Part Number | E5I09903 |
| Mill Diameter (Inch) | 5/16" |
| Mill Diameter (Decimal Inch) | 0.3125" |
| Mill Diameter (mm) | 7.94mm |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Shank Diameter (mm) | 7.94mm |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (Decimal Inch) | 1.5000" |
| Length of Cut (mm) | 38.10mm |
| Overall Length (Inch) | 6" |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (mm) | 152.40mm |
| Ball Nose (Decimal Inch) | 0.1563" |
| Ball Nose (Inch) | 5/32" |
| Ball Nose (mm) | 3.97mm |
| Helix | 30 Degree |
| Series | E5I09 |
| Coated | Bright |
| Material | Carbide |
| Type | Ball Nose Single End |
| Corner Type | Ball Nose |
