Product Specifications

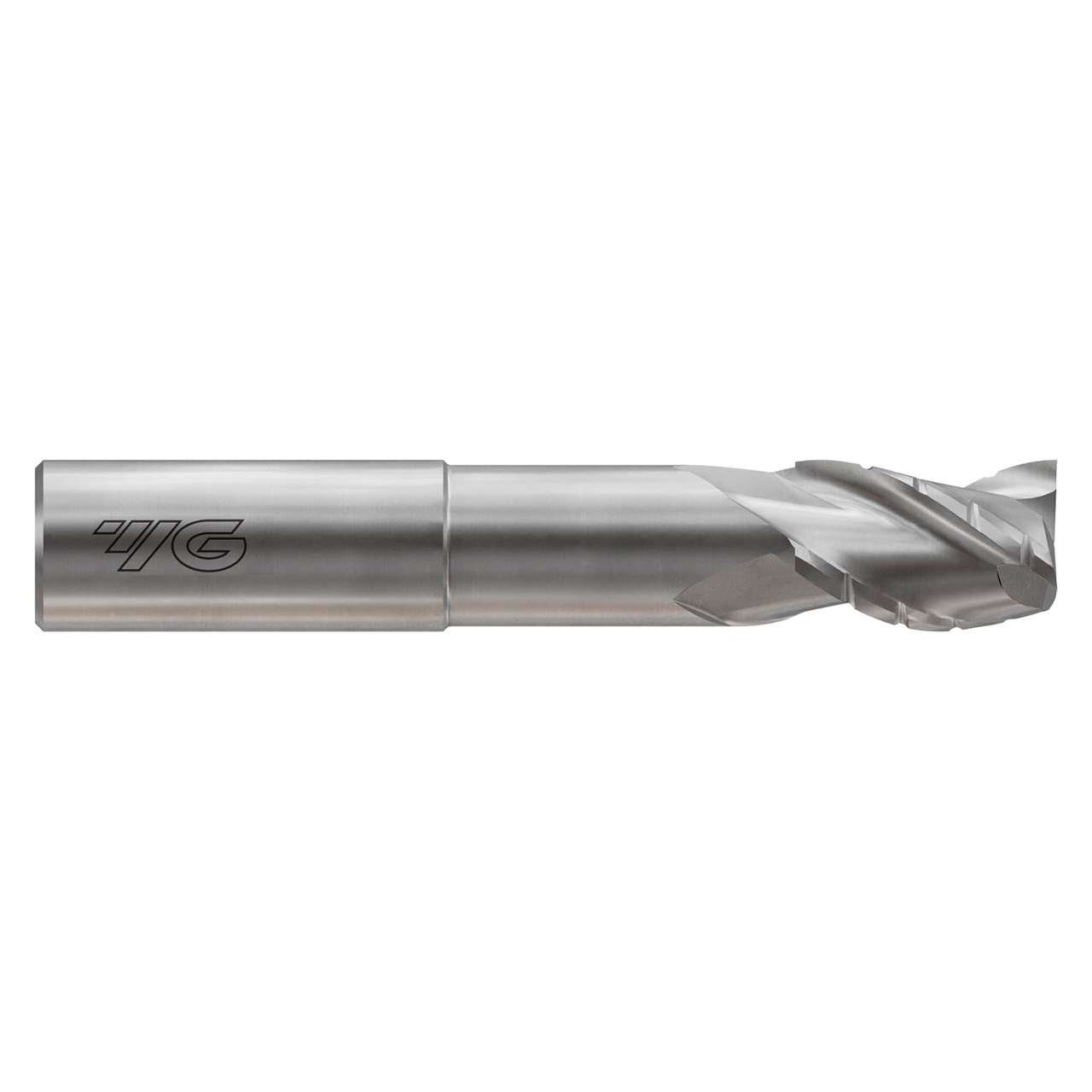

| Manufacturer Part Number | E5I37032 |
| Diameter (Inch) | 1/2" |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (mm) | 12.70mm |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (mm) | 15.88mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Length Below Shank (Inch) | 1-3/8" |
| Length Below Shank (Decimal Inch) | 1.3750" |
| Length Below Shank (mm) | 34.93mm |
| Neck (Decimal Inch) | 0.4700" |
| Number of Flutes | 3 |
| Series | E5I37 |
| Helix Angle | 37 Degree |
| Shank Style | Plain |
| Coating | Bright |
| Material | Carbide |
| Cut Type | Center |
| Corner Type | Square End |
| Type | Corner Radius With Neck Square End |
| Cutting Direction | Right |
| Application | N |
