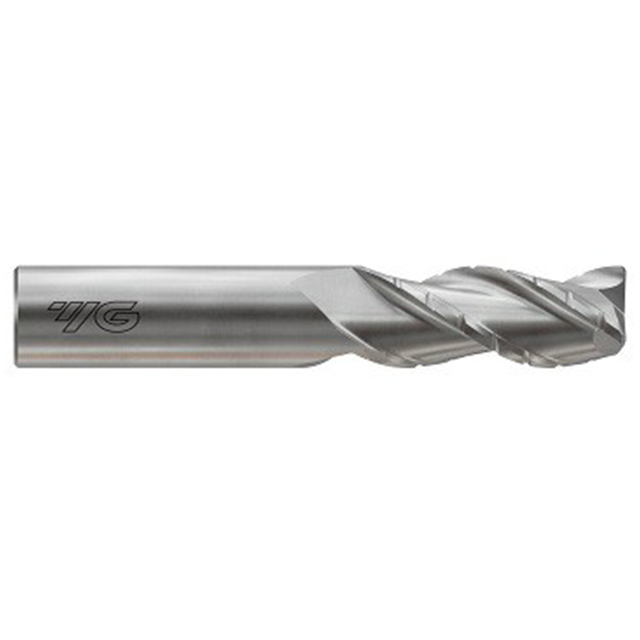

YG1 E5I38909 | 0.2500" Diameter x 0.2500" Shank x 1.2500" LOC x 3.2500" OAL x 0.0300" Radius 3 Flute Bright Coated Carbide Roughing End Mill

$37.50
Brand:
YG1
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
3
Length of Cut (Inch):
1-1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Shank Diameter (Inch):
1/4"
Shank Diameter (Decimal Inch):
0.2500"
Shank Diameter (mm):
6.35mm
Material:
Carbide
Finish/Coating:
Bright
Overall Length (Inch):
3-1/4"
Overall Length (Decimal Inch):
3.2500"
Overall Length (mm):
82.55mm
SKU:
25233570
Weight:
0.08 LBS
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberE5I38909
Diameter (Inch)1/4"
Diameter (Decimal Inch)0.2500"
Diameter (mm)6.35mm
Shank Diameter (Inch)1/4"
Shank Diameter (Decimal Inch)0.2500"
Shank Diameter (mm)6.35mm
Length of Cut (Inch)1-1/4"
Length of Cut (Decimal Inch)1.2500"
Length of Cut (mm)31.75mm
Overall Length (Inch)3-1/4"
Overall Length (Decimal Inch)3.2500"
Overall Length (mm)82.55mm
Corner Radius (Inch)2/67"
Corner Radius (Decimal Inch)0.0300"
Corner Radius (mm)0.76mm
Number of Flutes3
SeriesE5I38
Helix Angle37 Degree
Shank StylePlain
CoatingBright
MaterialCarbide
Cut TypeCenter
Corner TypeCorner Radius
Type Corner Radius With Neck
Cutting DirectionRight
ApplicationN
