| Manufacturer Part Number | E9984032 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 0.5000" |
| Shank Diameter (Inch) | 1/2" |
| Shank Diameter (mm) | 12.70mm |
| Overall Length (Decimal Inch) | 3.7500" |
| Overall Length (Inch) | 3-3/4" |
| Overall Length (mm) | 95.25mm |
| Length of Cut (Decimal Inch) | 0.8125" |
| Length of Cut (Inch) | 13/16" |
| Length of Cut (mm) | 20.64mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flute | 2 |
| Coating | Bright |
| Material | Premium HSS-PM |
| Cut Type | Center Cut |
| Shank Style | Flat |
| Series | E9984 |
| Cutting Direction | Right |

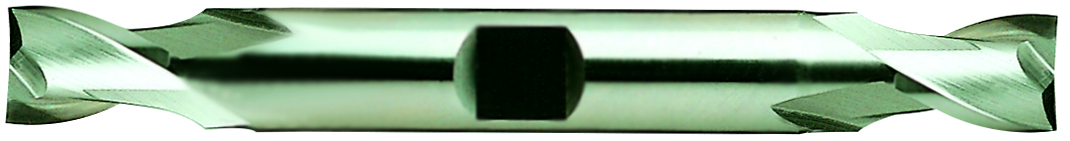

| Product Type | Square Double End Mill |
