Product Specifications
| # Manufacturer Number | E9988016 |
| Diameter (Decimal Inch) | 0.2500" |
| Diameter (Inch) | 1/4" |
| Diameter (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Overall Length (Decimal Inch) | 2.4375" |
| Overall Length (Inch) | 2-7/16" |
| Overall Length (mm) | 61.91mm |
| Length of Cut (Decimal Inch) | 0.6250" |
| Length of Cut (Inch) | 5/8" |
| Length of Cut (mm) | 15.88mm |
| Helix Angle (Degree) | 60 Degree |
| Number of Flute | 3 |
| Coating | Bright |
| Material | Premium HSS-PM |
| Cut Type | Center Cut |
| Shank Style | Flat |
| Series | E9988 |
| Cutting Direction | Right |

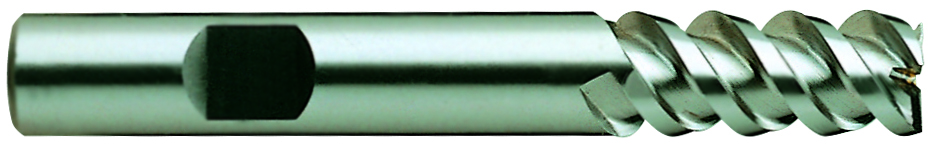

| Product Type | Square Length End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
1/4"
Mill Diameter (Decimal Inch):
0.2500"
Mill Diameter (mm):
6.35mm
Number of Flutes:
3
Length of Cut (Inch):
5/8"
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Shank Type:
Flat
Material:
Premium HSS-PM
Finish/Coating:
Bright
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Application:
P, M, K
Overall Length (Inch):
2-7/16"
Overall Length (Decimal Inch):
2.4375"
Overall Length (mm):
61.91mm
Helix Angle:
60 Degree
Center Cutting (yes/no):
Yes
Cutting Direction:
Right
