Features
- Designed for the machining aluminum and its alloys, non-ferrous materials.
- Increased tool life and superior chip evacuation
- Maximum-stock removal, chip ejection, stability
- Corner Radius for avoiding the chipping.
- Mirror face-excellent surface finish.
- Mill Diameter Tolerance: 0-.03"; Shank Diameter Tolerance: H6

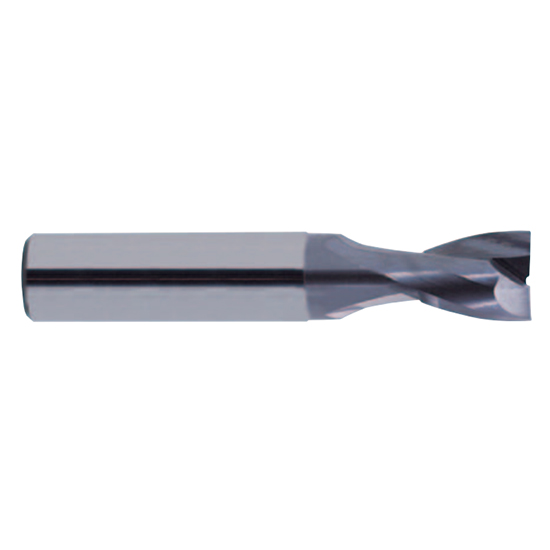

Product Specifications
| Brand | YG1 |
| Mill Diameter (mm) | 12mm |
| Shank Diameter (mm) | 12mm |
| Length of Cut (mm) | 16mm |
| Overall Length (mm) | 90mm |
| Number of Flutes | 2 |
| Finish/Coating | TiCN |
| Tool Material | Carbide |
| Center Cutting (yes/no) | Yes |
| Single or Double End | Single |
| End Type | Corner Radius |
| Corner Radius (Decimal Inch) | 0.2" |
| Cutting Direction | Right Hand |
| Flute Direction | Right |
| MPN | EG930120 |
| Helix Angle | 25 Degree |
| Series | EG930 |
| Country of Origin | Korea |
| End Type | Plain |
| Corner Radius (Decimal Inch) | 0.2" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (mm):
12mm
Shank Diameter (mm):
12mm
Length of Cut (mm):
16mm
Overall Length (mm):
90mm
Number of Flutes:
2
Finish/Coating:
TiCN
Center Cutting:
Yes
Single or Double End:
Single
End Type:
Corner Radius
Corner Radius (Decimal Inch):
0.2"
Ships:
From Partner Facility
