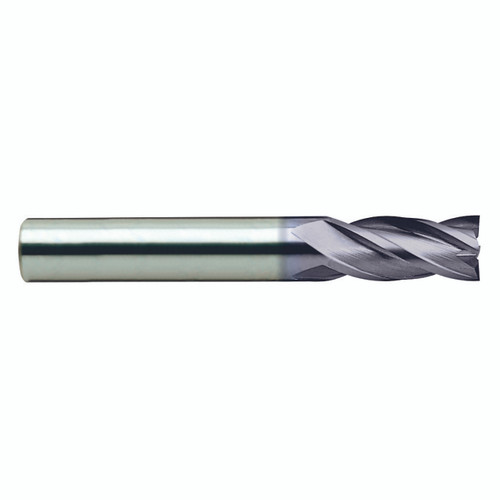

__50684.1694683853.jpg?c=2 "EH540(M).jpg")
Product Specifications
| EDP Number | EH540060 |
| Diameter (Decimal Inch) | 0.2400" |
| Diameter (Inch) | 13/55" |
| Diameter (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.5118" |
| Length of Cut (Inch) | 22/43" |
| Length of Cut (mm) | 13.00mm |
| Overall Length (Decimal Inch) | 2.2441" |
| Overall-Length-(Inch) | 2-21/86" |
| Overall Length (mm) | 57.00mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | EH540 |
| Coating | YG-Tylon F |
| Material | Carbide |
| Cut Type | Center |
| Length Type | Long |
| End Type | Single End |
| Product Type | Square End Mill |
