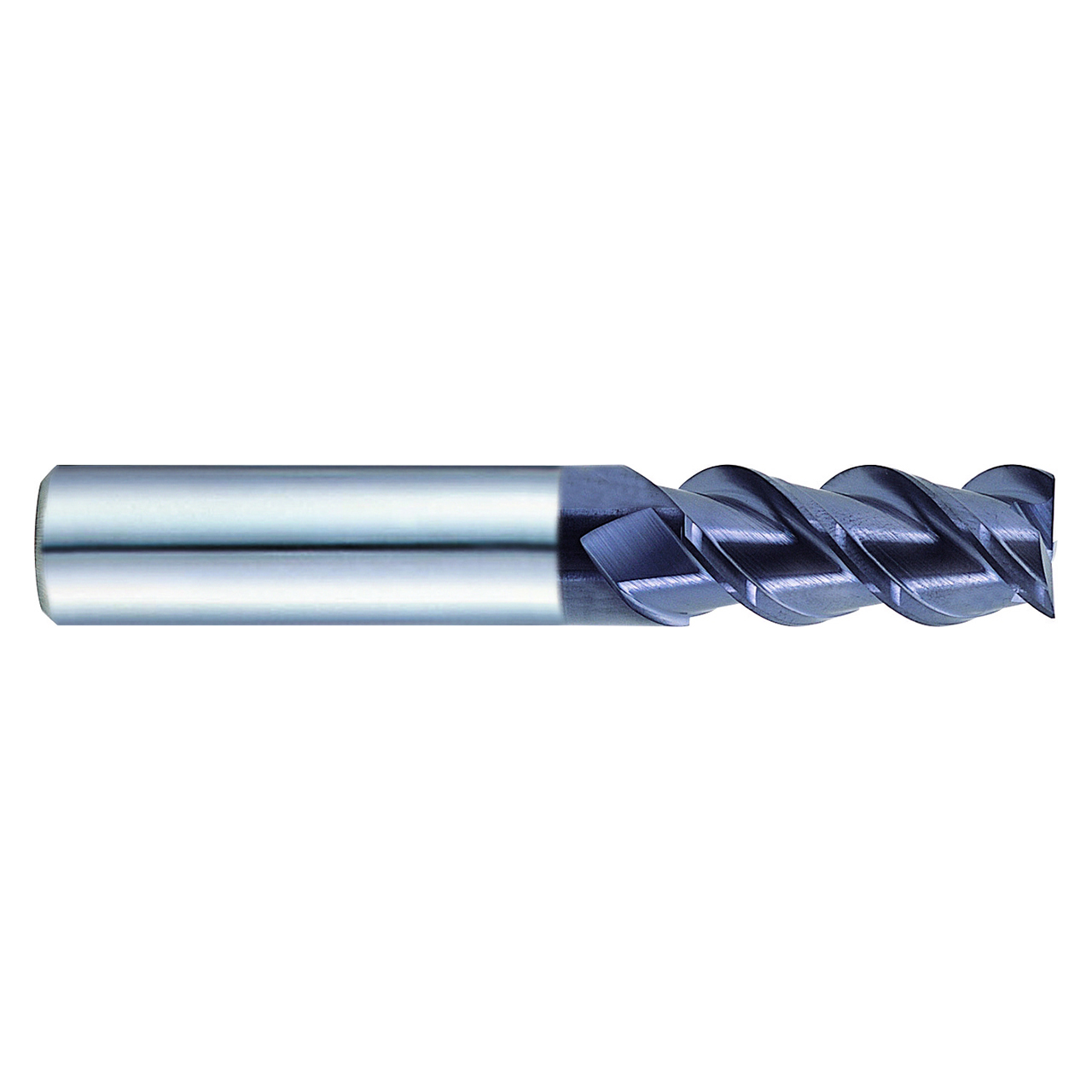

YG1 EH830160 | 0.6299" Diameter x 0.6299" Shank x 3.5433" OAL 3 Flute TiAlN Coated Carbide Square End Mill

$253.36 $182.42
(You save $70.94)
Brand:
YG1
Helix Angle:
50 Degree
Center Cutting:
Yes
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
25051562
UPC:
Weight:
0.49 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberEH830160
Diameter (Decimal Inch)0.6299"
Diameter (Inch)17/27"
Diameter (mm)16.00mm
Shank Diameter (Decimal Inch)0.6299"
Shank Diameter (Inch)17/27"
Shank Diameter (mm)16.00mm
Length of Cut (Decimal Inch)1.2598"
Length of Cut (Inch)1-20/8"
Length of Cut (mm)32.00mm
Overall Length (Decimal Inch)3.5433"
Overall Length (Inch)3-25/46"
Overall Length (mm)90.00mm
Number of Flutes3
SeriesEH830
Helix Angle (Degree)50 Degree
CoatingTiAlN
MaterialCarbide
Shank StylePlain
Cut TypeCenter Cut
Length TypeLong
ApplicationP,M,S
Cutting DirectionRight Hand
Product TypeSquare End Mill
