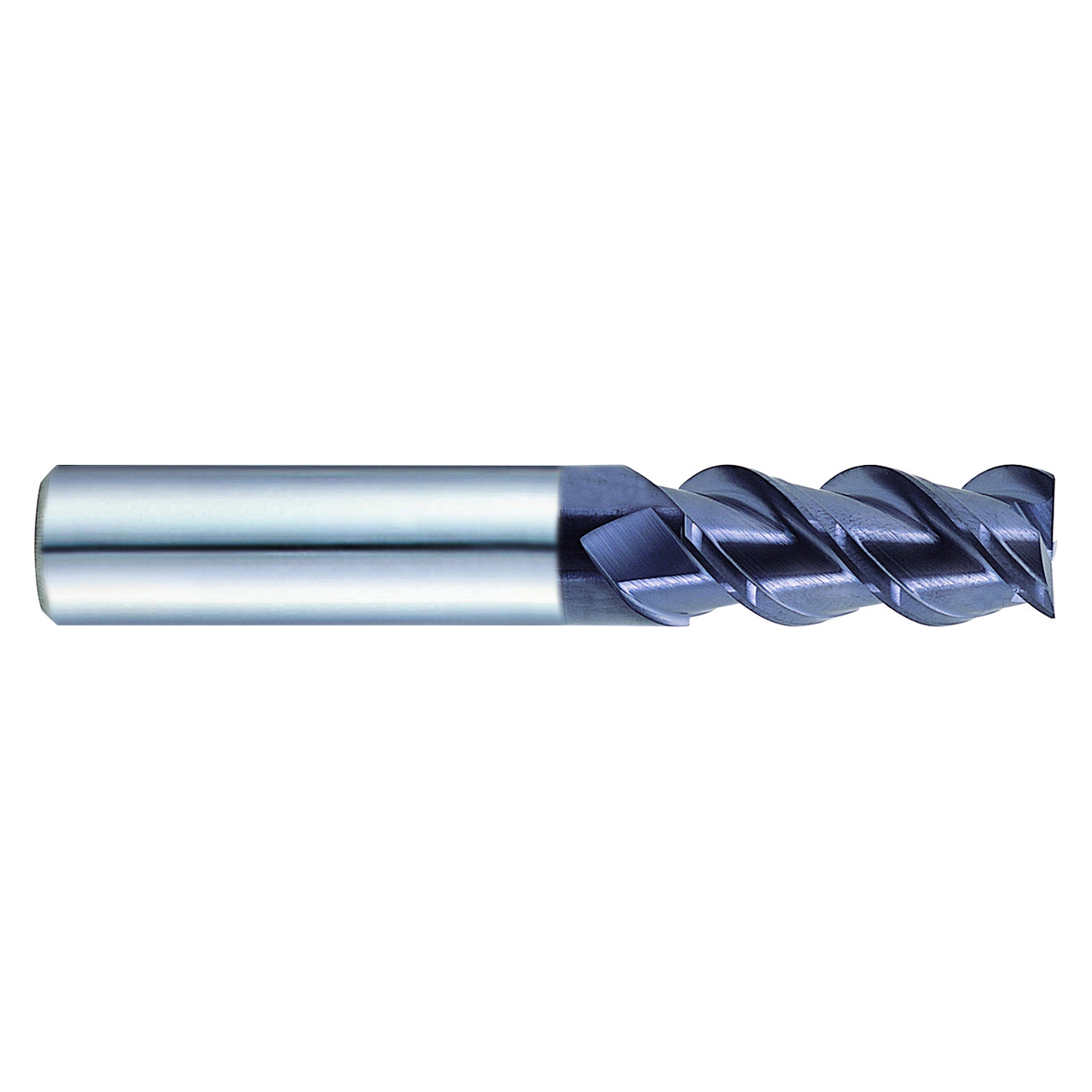

Product Specifications
| EDP Number | EH830200 |
| Diameter (Decimal Inch) | 0.7874" |
| Diameter (Inch) | 37/47" |
| Diameter (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.7874" |
| Shank Diameter (Inch) | 37/47" |
| Shank Diameter (mm) | 20.00mm |
| Length of Cut (Decimal Inch) | 1.4961" |
| Length of Cut (Inch) | 1-1/8" |
| Length of Cut (mm) | 38.00mm |
| Overall Length (Decimal Inch) | 3.9370" |
| Overall Length (Inch) | 3-15/16" |
| Overall Length (mm) | 100.00mm |
| Number of Flutes | 4 |
| Series | EH830 |
| Helix Angle (Degree) | 50 Degree |
| Coating | TiAlN |
| Material | Carbide |
| Shank Style | Plain |
| Cut Type | Center Cut |
| Length Type | Long |
| Application | P,M,S |
| Cutting Direction | Right Hand |
| Product Type | Square End Mill |
