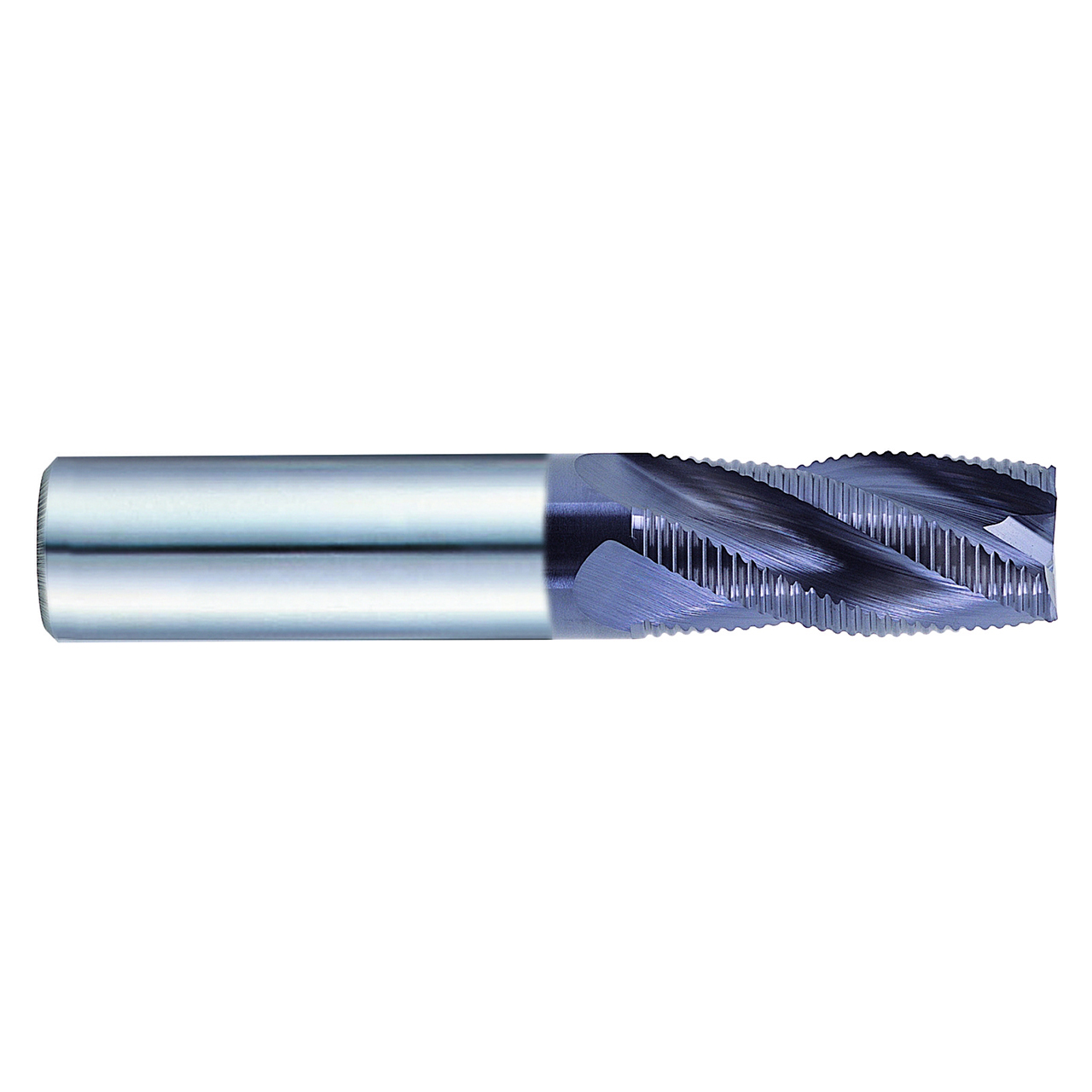

YG1 EH831090 | 0.3543" Diameter x 0.3937" Shank x 2.8346" OAL 4 Flute TiAlN Coated Carbide Roughing End Mill

$162.18 $110.28
(You save $51.90)
Brand:
YG1
Mill Diameter (Decimal Inch):
0.3543"
Mill Diameter (mm):
9.00mm
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
TiAlN
Shank Diameter (Decimal Inch):
0.3937"
Shank Diameter (mm):
10.00mm
Overall Length (Decimal Inch):
2.8346"
Overall Length (mm):
72.00mm
Length of Cut (Decimal Inch):
0.7480"
Length of Cut (mm):
19.00mm
Center Cutting:
Yes
interval quantity:
1
SKU:
25051570
UPC:
Weight:
0.17 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberEH831090
Diameter (Decimal Inch)0.3543"
Diameter (Inch)28/79"
Diameter (mm)9.00mm
Shank Diameter (Decimal Inch)0.3937"
Shank Diameter (Inch)37/94"
Shank Diameter (mm)10.00mm
Length of Cut (Decimal Inch)0.7480"
Length of Cut (Inch)3/8"
Length of Cut (mm)19.00mm
Overall Length (Decimal Inch)2.8346"
Overall Length (Inch)2-5/6"
Overall Length (mm)72.00mm
Number of Flutes4
SeriesEH831
Helix Angle (Degree)30 Degree
CoatingTiAlN
MaterialCarbide
Shank StylePlain
Cut TypeCenter Cut
Length TypeLong
ApplicationP,M,S
Cutting DirectionRight Hand
Product TypeRoughing End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
