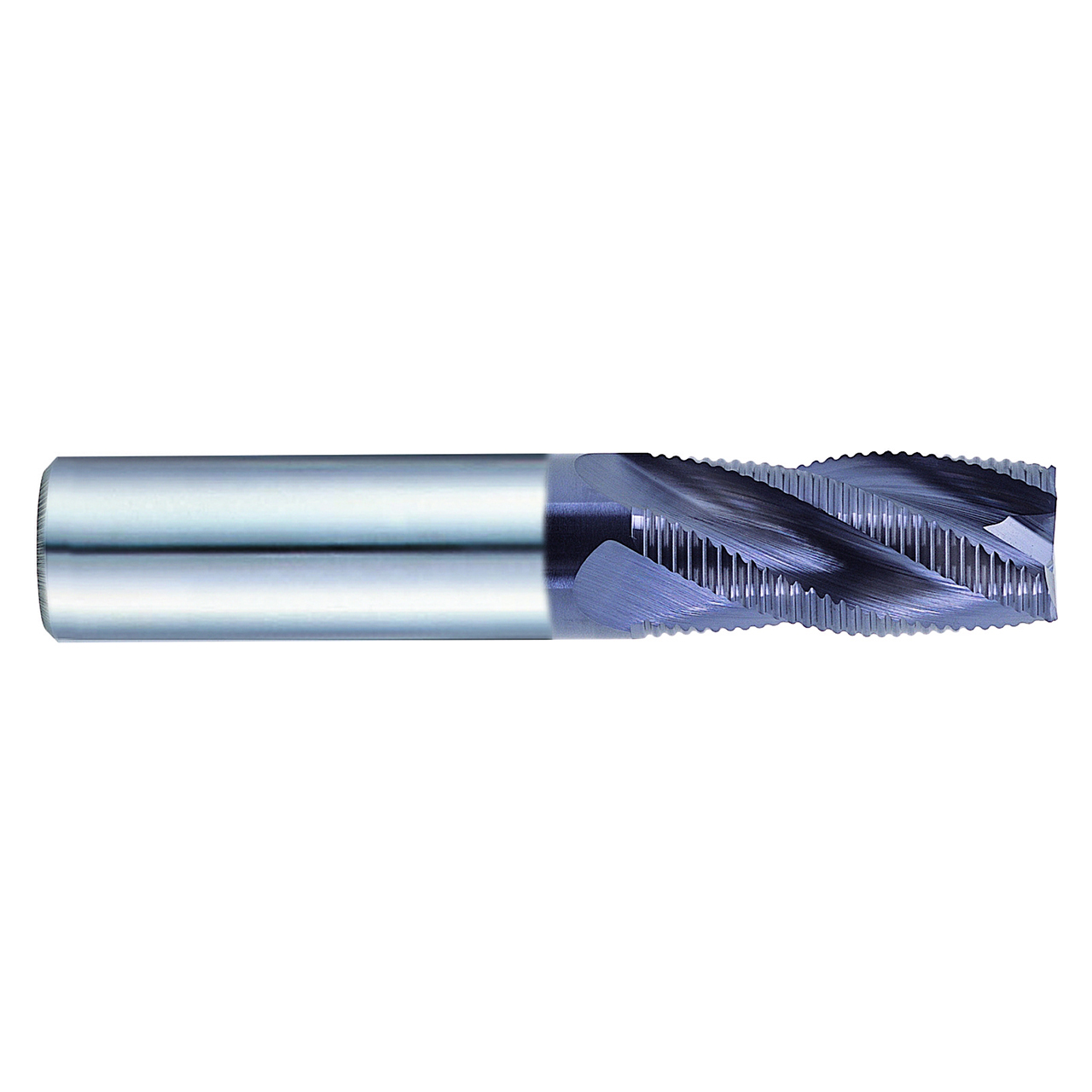

YG1 EH831140 | 14.00mm Diameter x 14.00mm Shank x 26.00mm LOC x 83.00mm OAL x 30 Degree Helix Angle 4 Flute TiAlN Coated Carbide EH831 Roughing End Mill

$266.61 $181.29
(You save $85.32)
Brand:
YG1
Mill Diameter (Decimal Inch):
0.5512"
Mill Diameter (mm):
14.00mm
Number of Flutes:
4
Material:
Carbide
Finish/Coating:
TiAlN
Shank Diameter (Decimal Inch):
0.5512"
Shank Diameter (mm):
14.00mm
Overall Length (Decimal Inch):
3.2677"
Overall Length (mm):
83.00mm
Length of Cut (Decimal Inch):
1.0236"
Length of Cut (mm):
26.00mm
Center Cutting:
Yes
interval quantity:
1
SKU:
25051573
UPC:
Weight:
0.38 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part NumberEH831140
Diameter (Decimal Inch)0.5512"
Diameter (Inch)43/78"
Diameter (mm)14.00mm
Shank Diameter (Decimal Inch)0.5512"
Shank Diameter (Inch)43/78"
Shank Diameter (mm)14.00mm
Length of Cut (Decimal Inch)1.0236"
Length of Cut (Inch)1-2/8"
Length of Cut (mm)26.00mm
Overall Length (Decimal Inch)3.2677"
Overall Length (Inch)3-19/71"
Overall Length (mm)83.00mm
Number of Flutes4
SeriesEH831
Helix Angle (Degree)30 Degree
CoatingTiAlN
MaterialCarbide
Shank StylePlain
Cut TypeCenter Cut
Length TypeLong
ApplicationP,M,S
Cutting DirectionRight Hand
Product TypeRoughing End Mill

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
