Product Specifications
| EDP Number | EH882030 |
| Diameter (Decimal Inch) | 0.1200" |
| Diameter (Inch) | 2/17" |
| Diameter (mm) | 3.00mm |
| Shank Diameter (Decimal Inch) | 0.1181" |
| Shank Diameter (Inch) | 2/17" |
| Shank Diameter (mm) | 3.00mm |
| Length of Cut (Decimal Inch) | 0.1575" |
| Length of Cut (Inch) | 3/19" |
| Length of Cut (mm) | 4.00mm |
| Overall Length (Decimal Inch) | 1.4961" |
| Overall-Length-(Inch) | 1-1/2" |
| Overall Length (mm) | 38.00mm |
| Corner Radius (Inch) | 0.20~0.25mm |
| Helix Angle (Degree) | 35 Degree |
| Number of Flutes | 3 |
| Cutting Direction | Right |
| Application | P,N |
| Shank Style | Plain |
| Series | EH882 |
| Coating | YG-Tylon F |
| Material | Carbide |
| Cut Type | Center |
| End Type | Single End |

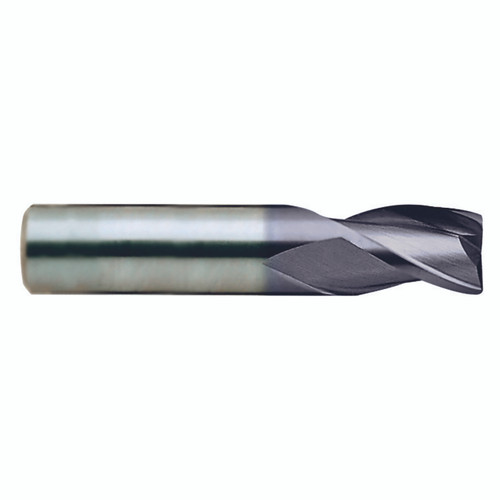

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
2/17"
Overall Length (Decimal Inch):
1.4961"
interval quantity:
1
