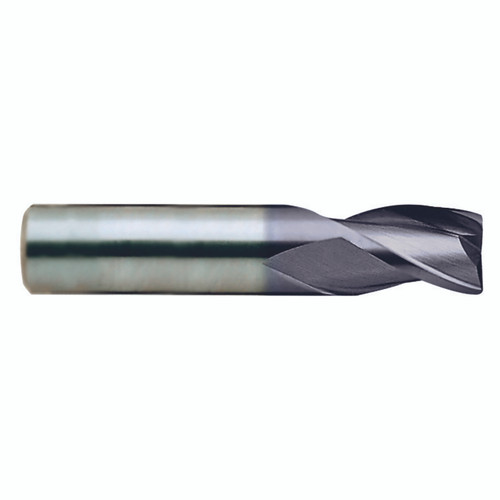

YG1 EH882040 | 0.1600" Diameter x 0.1575" Shank x 0.1969" LOC x 2.1260" OAL 3 Flute YG-Tylon F Coated Carbide Corner Radius End Mill

$36.91 $24.91
(You save $12.00)
Brand:
YG1
Length of Cut (Decimal Inch):
0.1969"
Length of Cut (mm):
5.00mm
Overall Length (Decimal Inch):
2.1260"
Overall Length (mm):
54.00mm
Material:
Carbide
Cutting Direction:
Right
interval quantity:
1
SKU:
25051590
UPC:
Weight:
0.05 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberEH882040
Diameter (Decimal Inch)0.1600"
Diameter (mm)4.00mm
Shank Diameter (Decimal Inch)0.1575"
Shank Diameter (mm)4.00mm
Length of Cut (Decimal Inch)0.1969"
Length of Cut (mm)5.00mm
Overall Length (Decimal Inch)2.1260"
Overall Length (mm)54.00mm
Corner Radius (Inch)0.20~0.25mm
Helix Angle (Degree)35 Degree
Number of Flutes3
Cutting DirectionRight
ApplicationP,N
Shank StylePlain
SeriesEH882
CoatingYG-Tylon F
MaterialCarbide
Cut TypeCenter
End TypeSingle End
Product TypeCorner Radius End Mill
