Product Specifications

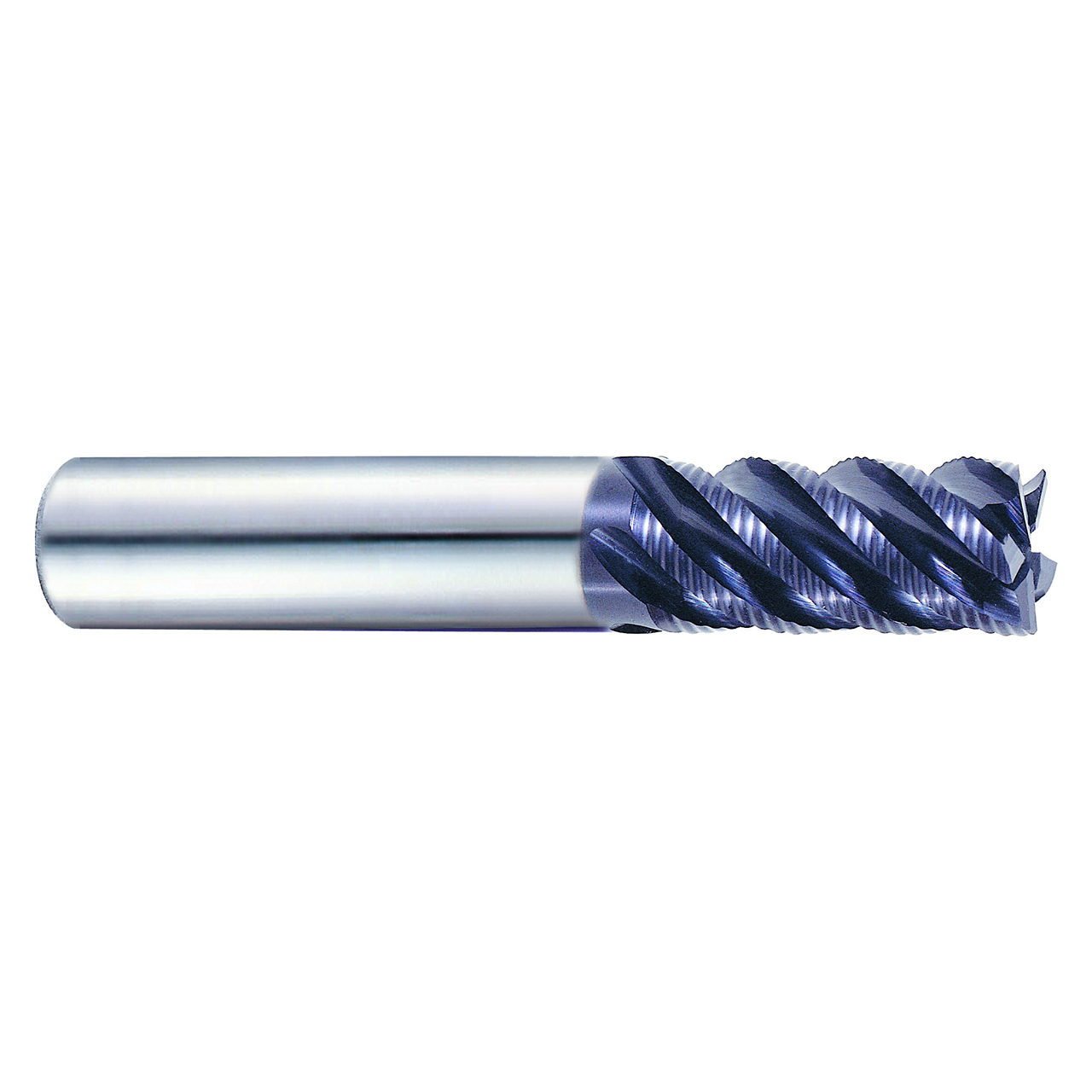

| EDP Number | EH919070 |
| Diameter (Decimal Inch) | 0.2756" |
| Diameter (Inch) | 8/29" |
| Diameter (mm) | 7.00mm |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (mm) | 8.00mm |
| Length of Cut (Decimal Inch) | 0.6299" |
| Length of Cut (Inch) | 17/8" |
| Length of Cut (mm) | 16.00mm |
| Overall Length (Decimal Inch) | 2.4803" |
| Overall Length (Inch) | 2-12/25" |
| Overall Length (mm) | 63.00mm |
| Number of Flutes | 4 |
| Series | EH919 |
| Helix Angle (Degree) | 45 Degree |
| Coating | TiAlN |
| Material | Carbide |
| Shank Style | Plain |
| Cut Type | Center Cut |
| Length Type | Long |
| Application | P,M,S |
| Cutting Direction | Right Hand |
| Product Type | Roughing End Mill |
