Product Specifications
| Manufacturer Part Number | EIB05908 |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.3750" |
| Length of Cut (mm) | 9.53mm |
| Overall Length (Inch) | 4" |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (mm) | 101.60mm |
| Neck Diameter (Decimal Inch) | 0.3550" |
| Neck Diameter (mm) | 9.02mm |
| Corner Radius (Decimal Inch) | 0.0200" |
| Corner Radius (mm) | 0.51mm |
| LBS (Inch) | 2" |
| LBS (mm) | 50.80mm |
| Number of Flute | 4 |
| Helix Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Shank Style | Plain |
| Material | Carbide |
| Coating | Diamond |

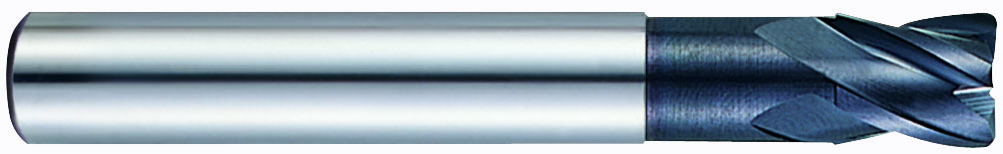

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
4
Length of Cut (Inch):
3/8"
Length of Cut (Decimal Inch):
0.3750"
Length of Cut (mm):
9.53mm
Material:
Carbide
Overall Length (Inch):
4.0000"
Overall Length (Decimal Inch):
4"
Overall Length (mm):
101.60mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Finish/Coating:
Diamond
Cutting Direction:
Right Hand
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.51mm
interval quantity:
1
