| Manufacturer Part Number | EIB07008 |
| Diameter (Inch) | 1/8" |
| Diameter (Decimal Inch) | 0.1250" |
| Diameter (mm) | 3.18mm |
| Shank Diameter (Inch) | 1/8" |
| Shank Diameter (Decimal Inch) | 0.1250" |
| Shank Diameter (mm) | 3.18mm |
| Length of Cut (Inch) | 3/8" |
| Length of Cut (Decimal Inch) | 0.3750" |
| Length of Cut (mm) | 9.53mm |
| Overall Length (Inch) | 3" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (mm) | 76.20mm |
| Ball Nose Radius (Inch) | 1/16" |
| Ball Nose Radius (Decimal Inch) | 0.0625" |
| Ball Nose Radius (mm) | 1.59mm |
| Neck Diameter (Decimal Inch) | 0.1150" |
| Neck Diameter (Inch) | 10/87" |
| Neck Diameter (mm) | 2.92mm |
| LBS (Inch) | 1-1/2" |
| LBS (mm) | 38.10mm |
| Number of Flute | 4 |
| Helix Angle (Degree) | 30 Degree |
| Cutting Direction | Right Hand |
| Shank Style | Plain |
| Material | Carbide |
| Coating | Diamond |

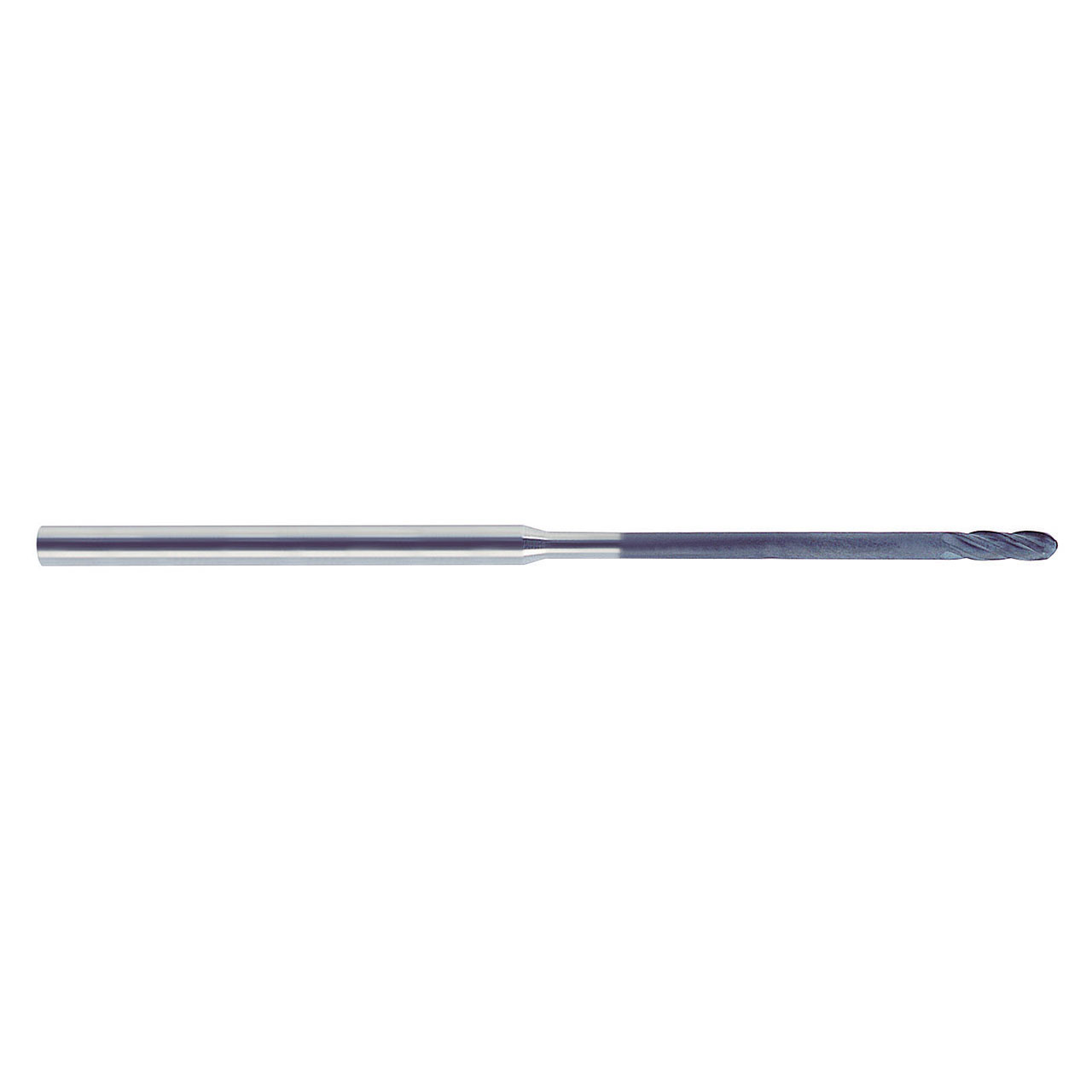

| Product Type | Ball Nose End Mill |
