| Manufacturer Part Number | EM669060 |
| Diameter (Decimal Inch) | 0.2400" |
| Diameter (Inch) | 13/55" |
| Diameter (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Flat on Ball (mm) | 2.03mm |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.2756" |
| Length of Cut (Inch) | 8/29" |
| Length of Cut (mm) | 7.00mm |
| Length Below Shank (Decimal Inch) | 1.1811" |
| Length Below Shank (Inch) | 1-2/11" |
| Length Below Shank (mm) | 30.00mm |
| Overall Length (Decimal Inch) | 3.9370" |
| Overall Length (mm) | 100.00mm |
| Ball Nose Radius (Decimal Inch) | 0.1181" |
| Ball Nose Radius (Inch) | 2/17" |
| Overall Length (Inch) | 3-15/16" |
| Neck Diameter (Decimal Inch) | 0.1850" |
| Ball Nose Radius (mm) | 3.00mm |
| Neck Diameter (Inch) | 5/27" |
| Neck Diameter (mm) | 4.70mm |
| Number of Flutes | 2 |
| Flat on Ball (Decimal Inch) | 0.0800" |
| Flat on Ball (Inch) | 5/64" |
| Series | EM669 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Long |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |

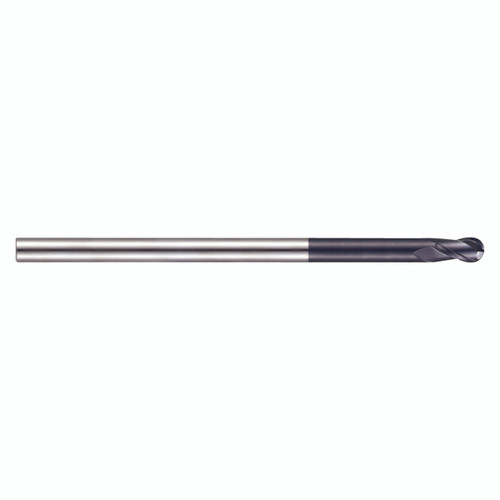

| Produce Type | Ball Nose End Mill |
