Product Specifications

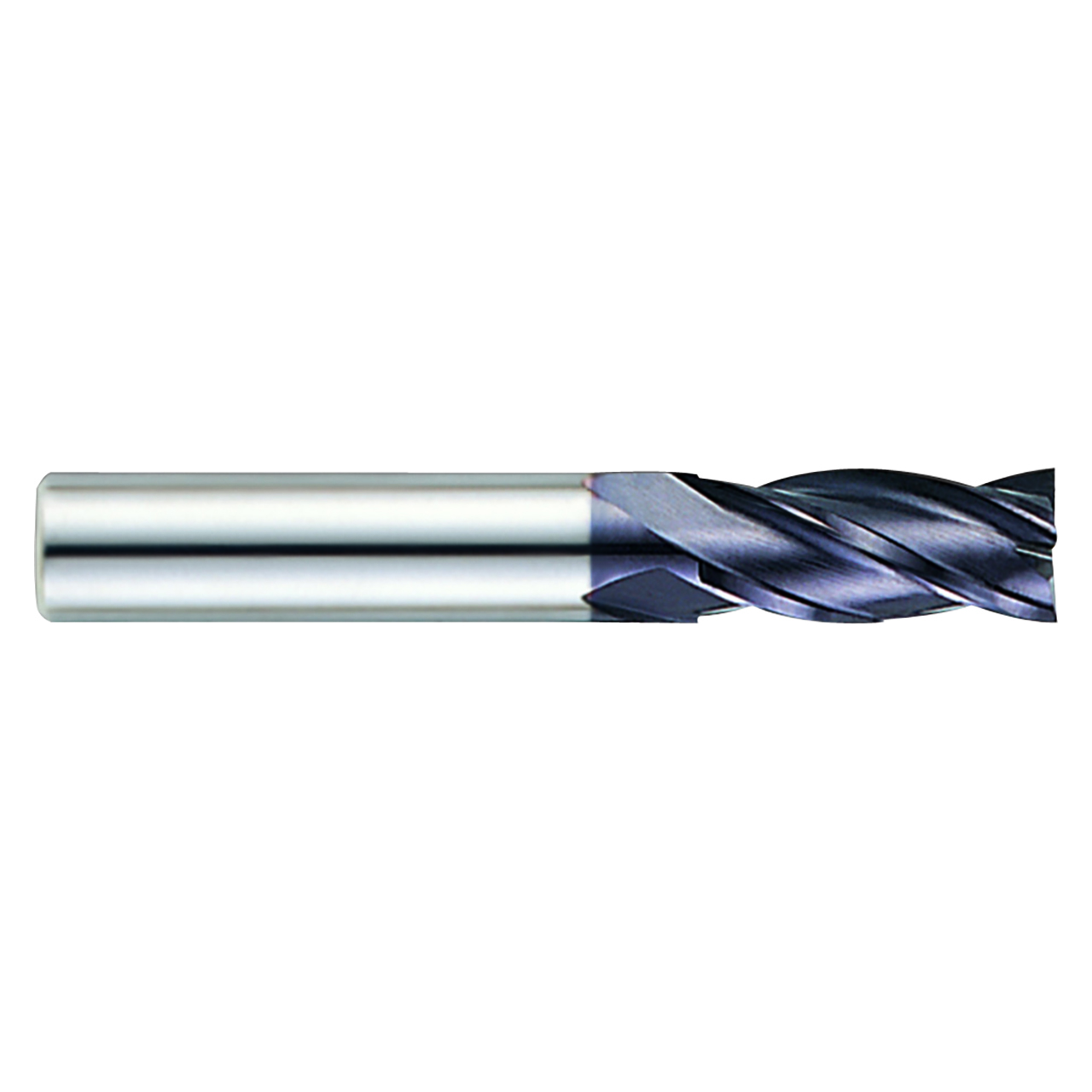

| EDP Number | EM811200 |
| Diameter (Decimal Inch) | 0.7900" |
| Diameter (Inch) | 37/47" |
| Diameter (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.7874" |
| Shank Diameter (Inch) | 37/47" |
| Shank Diameter (mm) | 20.00mm |
| Length of Cut (Decimal Inch) | 1.4961" |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (mm) | 38.00mm |
| Overall Length (Decimal Inch) | 4.1339" |
| Overall Length (mm) | 105.00mm |
| Overall Length (Inch) | 4-2/15" |
| Number of Flutes | 4 |
| Series | EM811 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Short |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Square End Mill |
