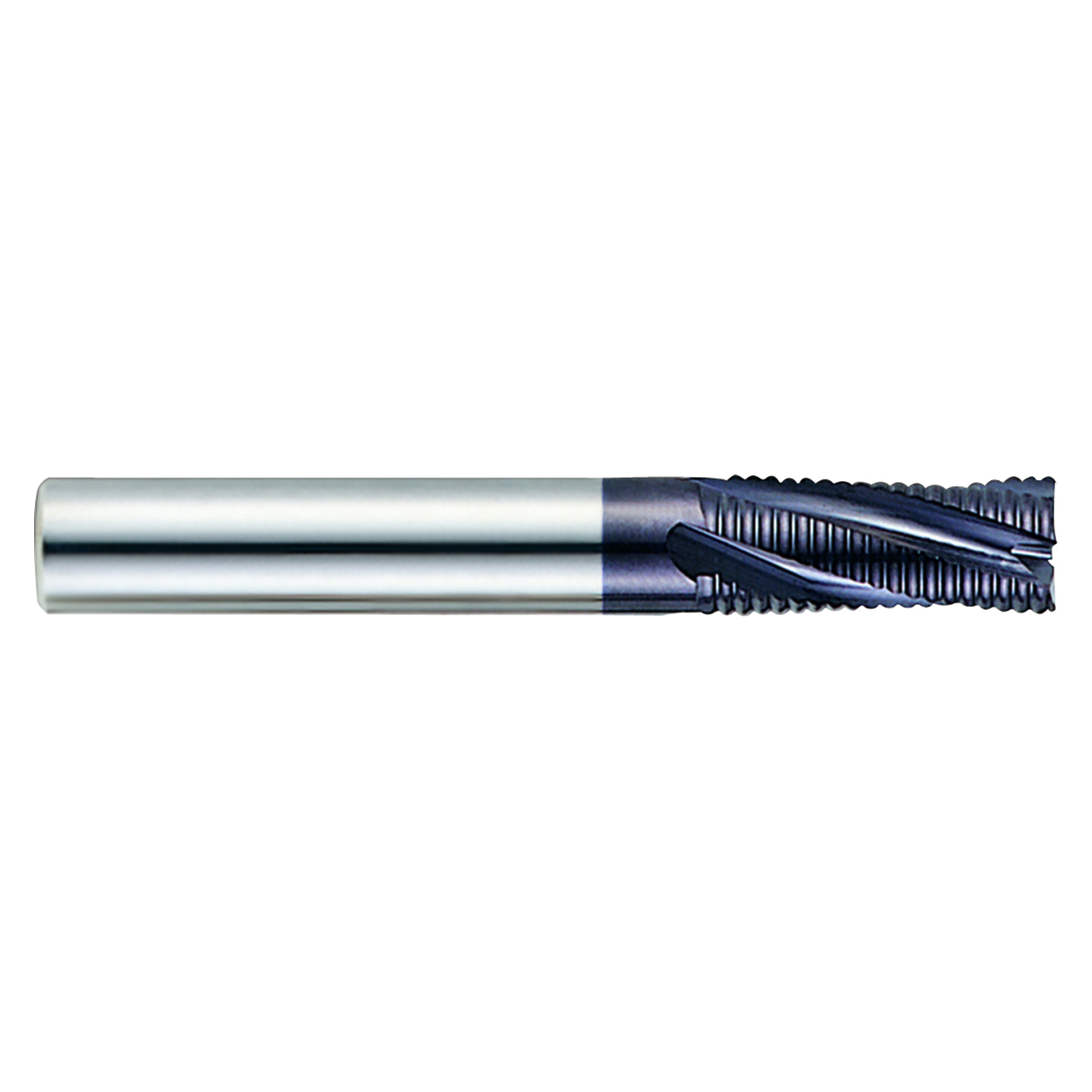

Product Specifications
| EDP Number | EM814160 |
| Diameter (Decimal Inch) | 0.6300" |
| Diameter (Inch) | 17/27" |
| Diameter (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Chamfer Size (Decimal Inch) | 0.0200" |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Decimal Inch) | 1.2598" |
| Length of Cut (Inch) | 1-20/77" |
| Length of Cut (mm) | 32.00mm |
| Overall Length (Decimal Inch) | 3.6220" |
| Overall Length (mm) | 92.00mm |
| Overall Length (Inch) | 3-28/45" |
| Number of Flutes | 4 |
| Chamfer Size (mm) | 0.60mm |
| Series | EM814 |
| Helix Angle (Degree) | 20 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Long |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Roughing End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Number of Flutes:
4
Diameter (Decimal Inch):
0.6299"
Diameter (mm):
16.00mm
Shank Diameter (Decimal Inch):
0.6299"
Shank Style:
Plain
Finish/Coating:
ALTiN
Material:
Carbide
Cut Type:
Center Cut;interval quantity=1"
