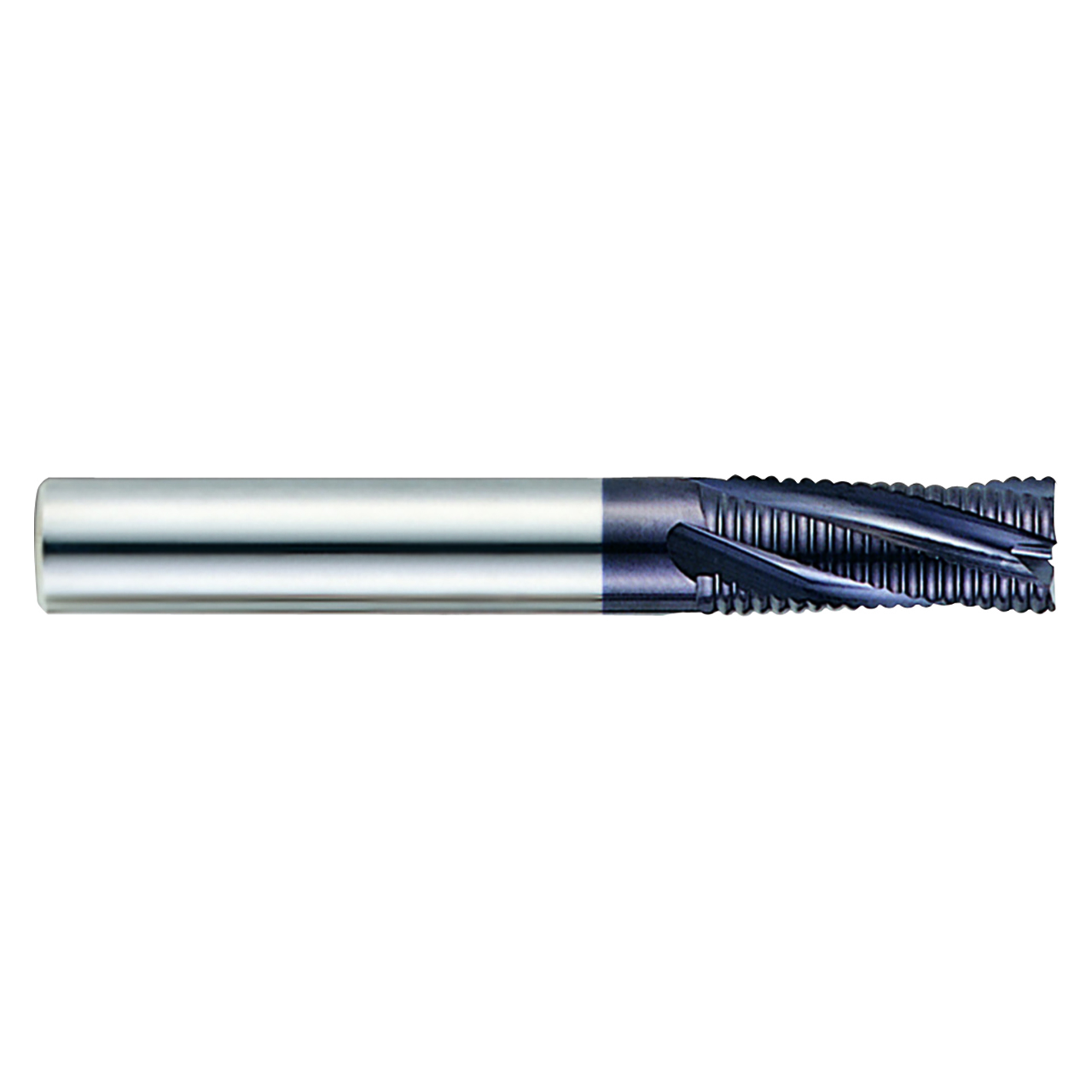

Product Specifications
| EDP Number | EM814200 |
| Diameter (Decimal Inch) | 0.7900" |
| Diameter (Inch) | 37/47" |
| Diameter (mm) | 20.00mm |
| Shank Diameter (Decimal Inch) | 0.7874" |
| Chamfer Size (Decimal Inch) | 0.0200" |
| Shank Diameter (Inch) | 37/47" |
| Shank Diameter (mm) | 20.00mm |
| Length of Cut (Decimal Inch) | 1.4961" |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (mm) | 38.00mm |
| Overall Length (Decimal Inch) | 4.0945" |
| Overall Length (mm) | 104.00mm |
| Overall Length (Inch) | 4-5/53" |
| Number of Flutes | 4 |
| Chamfer Size (mm) | 0.60mm |
| Series | EM814 |
| Helix Angle (Degree) | 20 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Long |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Roughing End Mill |
