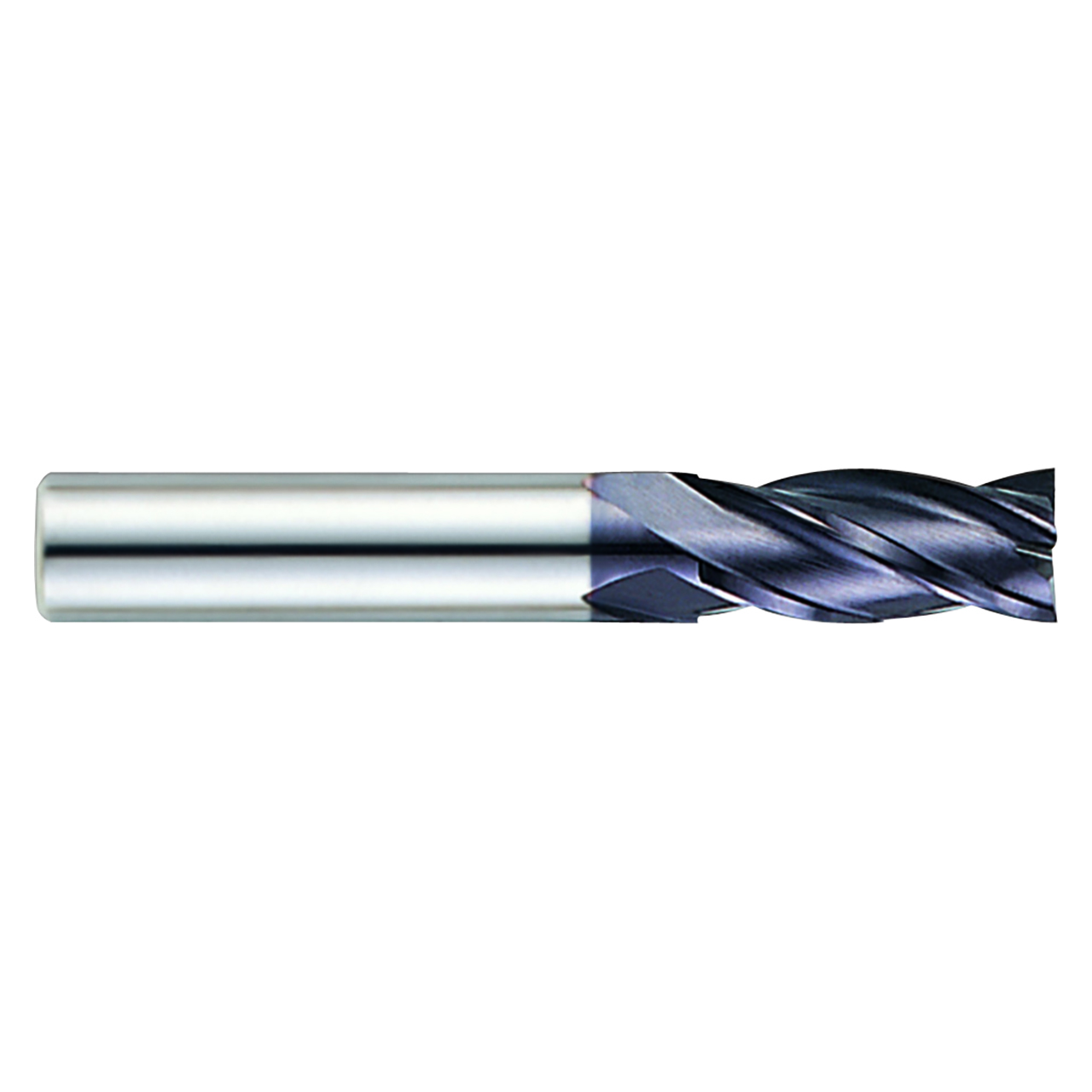

| Manufacturer Part Number | EM817050 |
| Diameter (Decimal Inch) | 0.2000" |
| Diameter (Inch) | 12/61" |
| Diameter (mm) | 5.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.7874" |
| Length of Cut (Inch) | 37/47" |
| Length of Cut (mm) | 20.00mm |
| Overall Length (Decimal Inch) | 2.3622" |
| Overall Length (mm) | 60.00mm |
| Overall Length (Inch) | 2-25/69" |
| Number of Flutes | 4 |
| Series | EM817 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Long |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Square End Mill |
