Product Specifications
| EDP Number | EM818916 |
| Diameter (Decimal Inch) | 0.6300" |
| Diameter (Inch) | 17/27" |
| Diameter (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Decimal Inch) | 1.9685" |
| Length of Cut (Inch) | 1-31/32" |
| Length of Cut (mm) | 50.00mm |
| Overall Length (Decimal Inch) | 4.3307" |
| Overall Length (mm) | 110.00mm |
| Corner Radius (Decimal Inch) | 0.0394" |
| Corner Radius (Inch) | 3/76" |
| Corner Radius (mm) | 1.00mm |
| Overall Length (Inch) | 4-1/3" |
| Number of Flutes | 2 |
| Series | EM818 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Long |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |

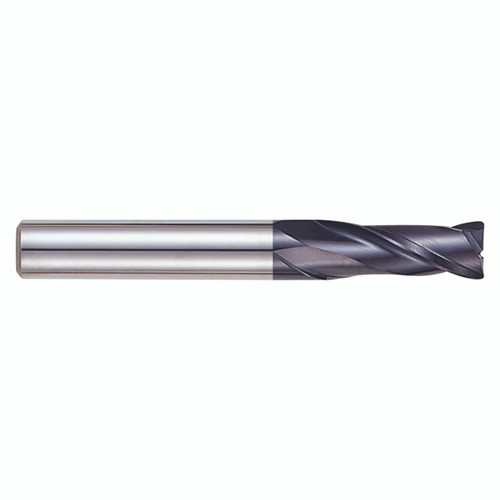

| Produce Type | Corner Radius End Mill |
