Product Specifications
| EDP Number | EM833060 |
| Diameter (Decimal Inch) | 0.2400" |
| Diameter (Inch) | 13/55" |
| Diameter (mm) | 6.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.6299" |
| Length of Cut (Inch) | 17/27" |
| Length of Cut (mm) | 16.00mm |
| Overall Length (Decimal Inch) | 2.2441" |
| Overall Length (mm) | 57.00mm |
| Ball Nose Radius (Decimal Inch) | 0.1181" |
| Ball Nose Radius (Inch) | 2/17" |
| Overall Length (Inch) | 2-21/86" |
| Ball Nose Radius (mm) | 3.00mm |
| Number of Flutes | 3 |
| Series | EM833 |
| Helix Angle (Degree) | 20 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Long |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |

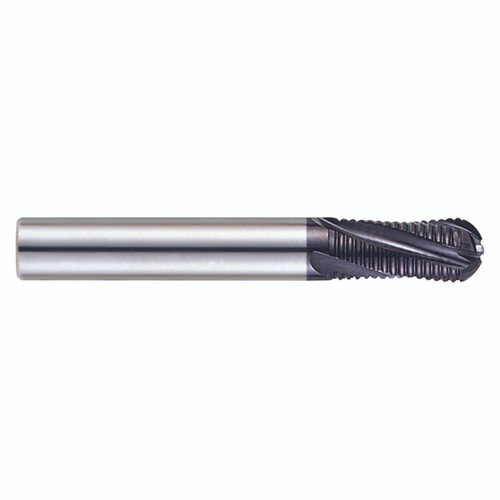

| Produce Type | Ball Nose Roughing End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
13/55"
Mill Diameter (Decimal Inch):
0.2400"
Mill Diameter (mm):
6.00mm
Number of Flutes:
3
Length of Cut (Inch):
17/27"
Length of Cut (Decimal Inch):
0.6299"
Length of Cut (mm):
16.00mm
Shank Diameter (Inch):
13/55"
Shank Diameter (Decimal Inch):
0.2362"
Shank Diameter (mm):
6.00mm
Material:
Carbide
Finish/Coating:
ALTiN
Overall Length (Inch):
2-21/86"
Overall Length (Decimal Inch):
2.2441"
Overall Length (mm):
57.00mm
