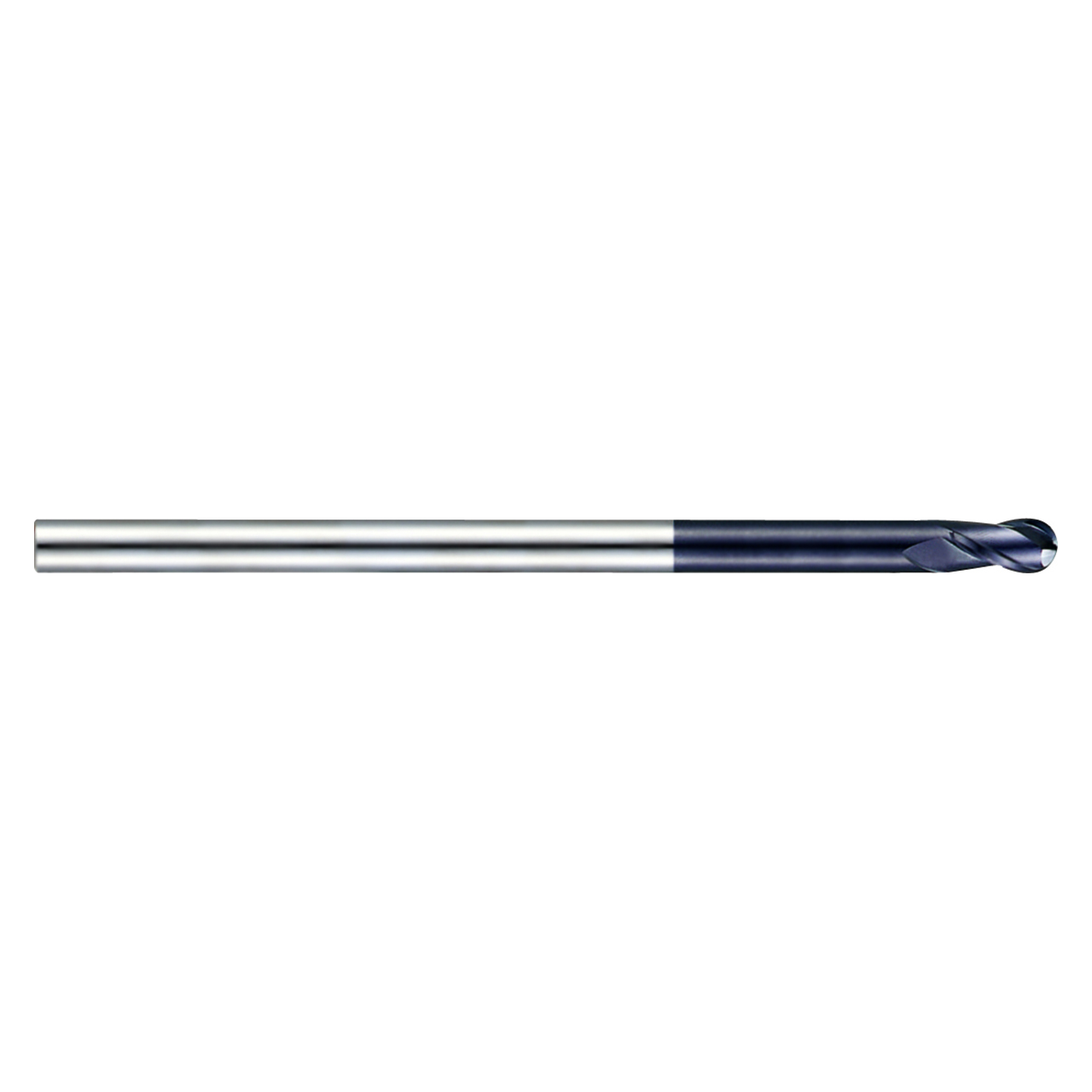

Product Specifications
| EDP Number | EM838030 |
| Diameter (Decimal Inch) | 0.1200" |
| Diameter (Inch) | 2/17" |
| Diameter (mm) | 3.00mm |
| Shank Diameter (Decimal Inch) | 0.1181" |
| Shank Diameter (Inch) | 2/17" |
| Shank Diameter (mm) | 3.00mm |
| Length of Cut (Decimal Inch) | 0.3150" |
| Length of Cut (Inch) | 23/73" |
| Length of Cut (mm) | 8.00mm |
| Overall Length (Decimal Inch) | 3.9370" |
| Overall Length (mm) | 100.00mm |
| Ball Nose Radius (Decimal Inch) | 0.0591" |
| Ball Nose Radius (Inch) | 1/17" |
| Overall Length (Inch) | 3-15/16" |
| Ball Nose Radius (mm) | 1.50mm |
| Number of Flutes | 2 |
| Series | EM838 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Long |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Ball End Mill |
