Product Specifications

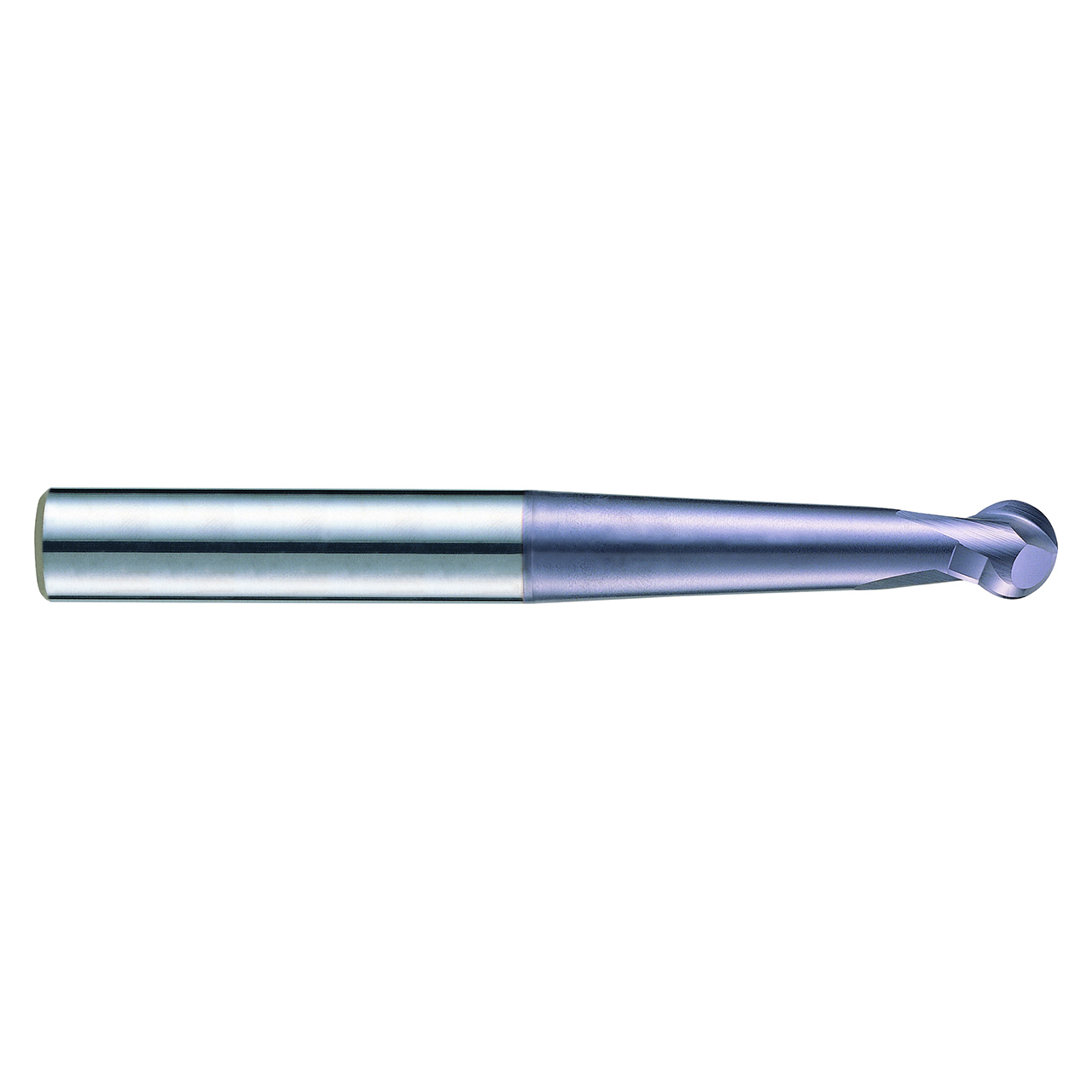

| EDP Number | EM863100 |
| Diameter (Decimal Inch) | 0.3900" |
| Diameter (Inch) | 37/94" |
| Diameter (mm) | 10.00mm |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (Inch) | 37/94" |
| Shank Diameter (mm) | 10.00mm |
| Length of Cut (Decimal Inch) | 0.3110" |
| Length of Cut (Inch) | 14/45" |
| Length of Cut (mm) | 7.90mm |
| Length Below Shank (Decimal Inch) | 1.5748" |
| Length Below Shank (Inch) | 1-23/40" |
| Length Below Shank (mm) | 40.00mm |
| Overall Length (Decimal Inch) | 3.9370" |
| Overall Length (mm) | 100.00mm |
| Ball Nose Radius (Decimal Inch) | 0.1969" |
| Ball Nose Radius (Inch) | 12/61" |
| Overall Length (Inch) | 3-15/16" |
| Neck Diameter (Decimal Inch) | 0.3228" |
| Ball Nose Radius (mm) | 5.00mm |
| Neck Diameter (Inch) | 10/31" |
| Neck Diameter (mm) | 8.20mm |
| Number of Flutes | 2 |
| Series | EM863 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Long |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Ball End Mill |
