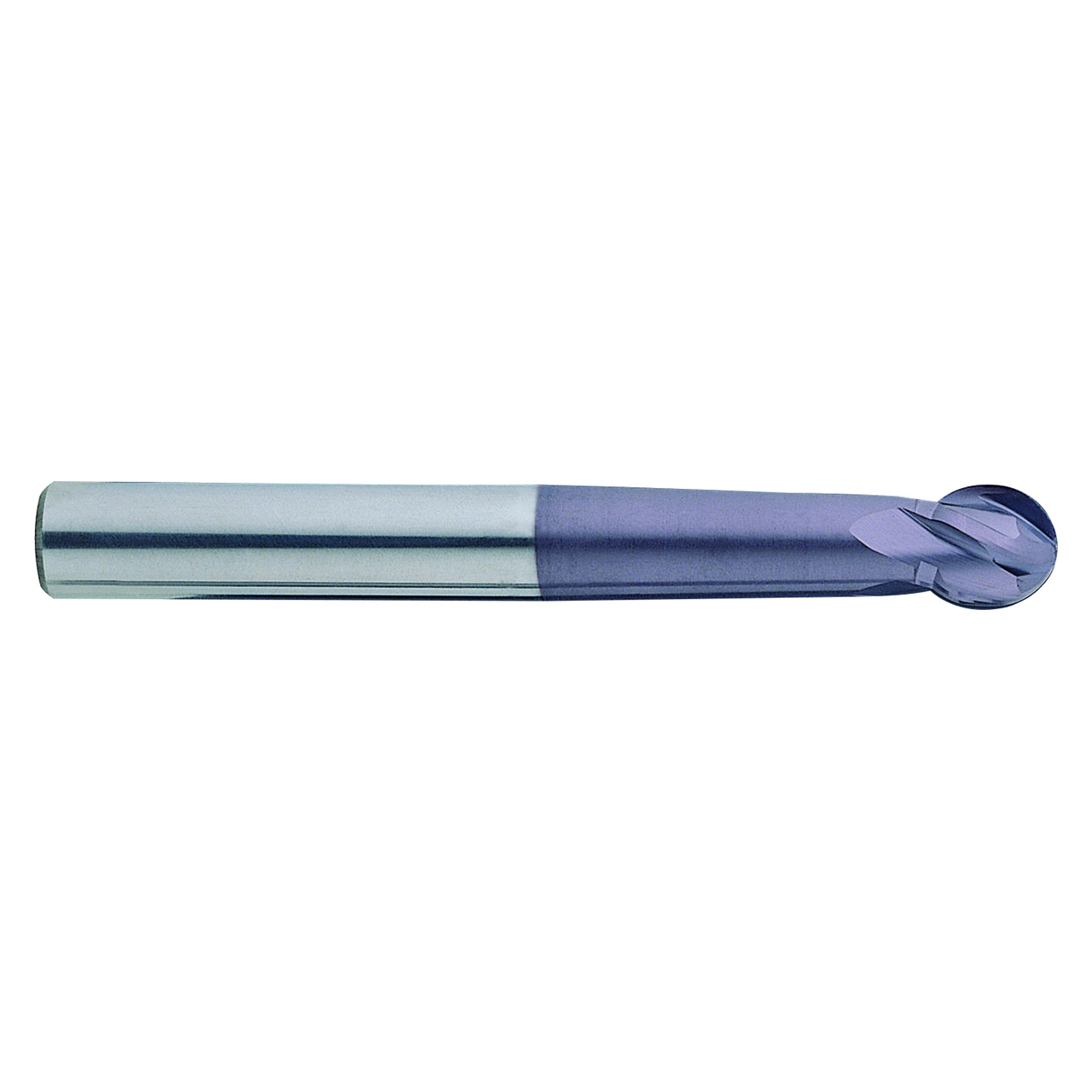

Product Specifications
| EDP Number | EM864160 |
| Diameter (Decimal Inch) | 0.6300" |
| Diameter (Inch) | 17/27" |
| Diameter (mm) | 16.00mm |
| Shank Diameter (Decimal Inch) | 0.6299" |
| Shank Diameter (Inch) | 17/27" |
| Shank Diameter (mm) | 16.00mm |
| Length of Cut (Decimal Inch) | 0.4882" |
| Length of Cut (Inch) | 21/43" |
| Length of Cut (mm) | 12.40mm |
| Length Below Shank (Decimal Inch) | 2.3228" |
| Length Below Shank (Inch) | 2-31/96" |
| Length Below Shank (mm) | 59.00mm |
| Overall Length (Decimal Inch) | 5.9055" |
| Overall Length (mm) | 150.00mm |
| Ball Nose Radius (Decimal Inch) | 0.3150" |
| Ball Nose Radius (Inch) | 23/73" |
| Overall Length (Inch) | 5-48/53" |
| Neck Diameter (Decimal Inch) | 0.5276" |
| Ball Nose Radius (mm) | 8.00mm |
| Neck Diameter (Inch) | 19/36" |
| Neck Diameter (mm) | 13.40mm |
| Number of Flutes | 4 |
| Series | EM864 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Long |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Ball End Mill |
