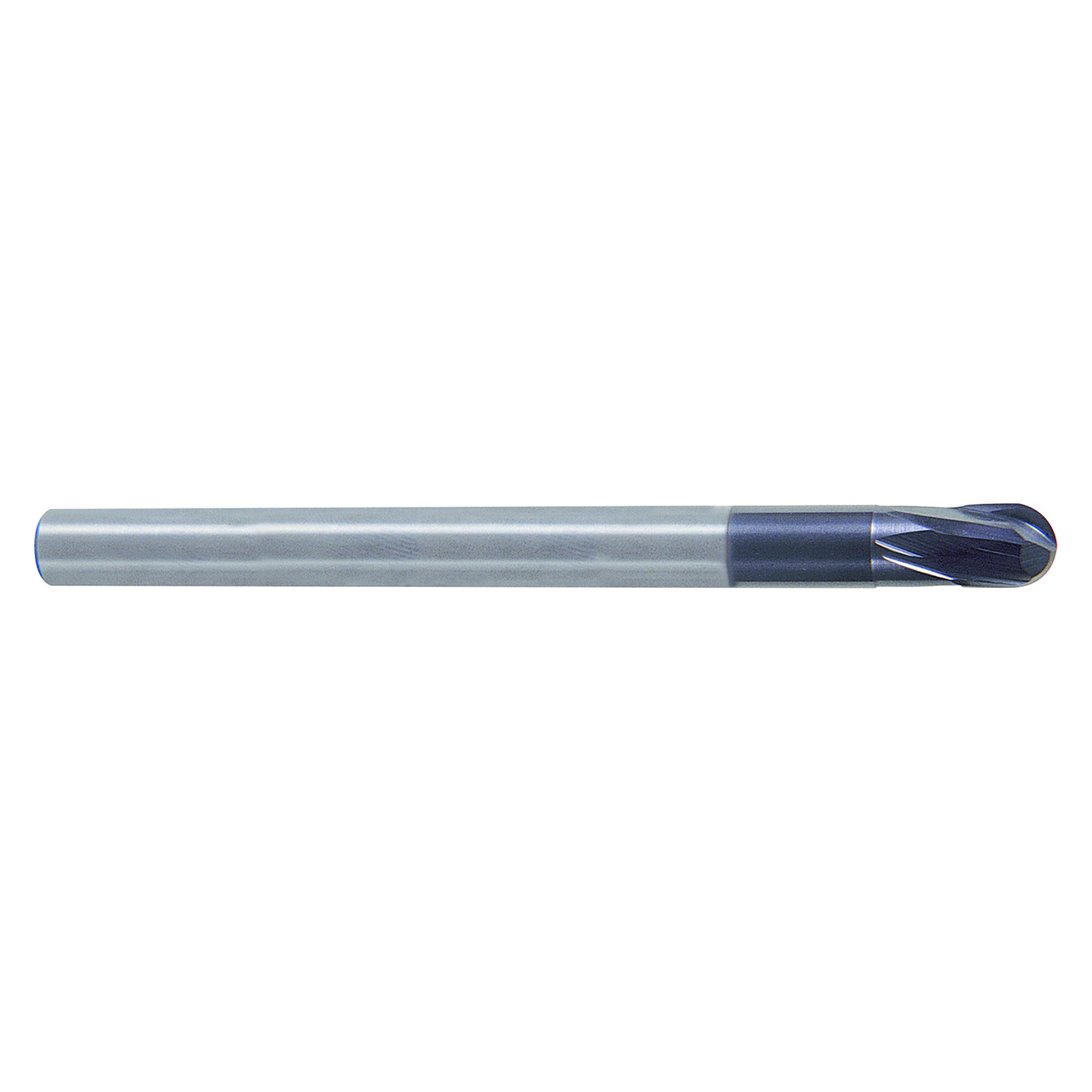

Product Specifications
| EDP Number | EM868250 |
| Diameter (Decimal Inch) | 0.9800" |
| Diameter (Inch) | 62/63" |
| Diameter (mm) | 25.00mm |
| Shank Diameter (Decimal Inch) | 0.9843" |
| Shank Diameter (Inch) | 62/63" |
| Shank Diameter (mm) | 25.00mm |
| Length of Cut (Decimal Inch) | 0.9843" |
| Length of Cut (Inch) | 62/63" |
| Length of Cut (mm) | 25.00mm |
| Length Below Shank (Decimal Inch) | 1.9685" |
| Length Below Shank (Inch) | 1-31/32" |
| Length Below Shank (mm) | 50.00mm |
| Overall Length (Decimal Inch) | 7.0866" |
| Overall Length (mm) | 180.00mm |
| Ball Nose Radius (Decimal Inch) | 0.4921" |
| Ball Nose Radius (Inch) | 31/63" |
| Overall Length (Inch) | 7-2/23" |
| Neck Diameter (Decimal Inch) | 0.9764" |
| Ball Nose Radius (mm) | 12.50mm |
| Neck Diameter (Inch) | 83/85" |
| Neck Diameter (mm) | 24.80mm |
| Number of Flutes | 2 |
| Series | EM868 |
| Helix Angle (Degree) | 15 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Stub Length |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P,H |
| Produce Type | Ball Nose End Mill |
