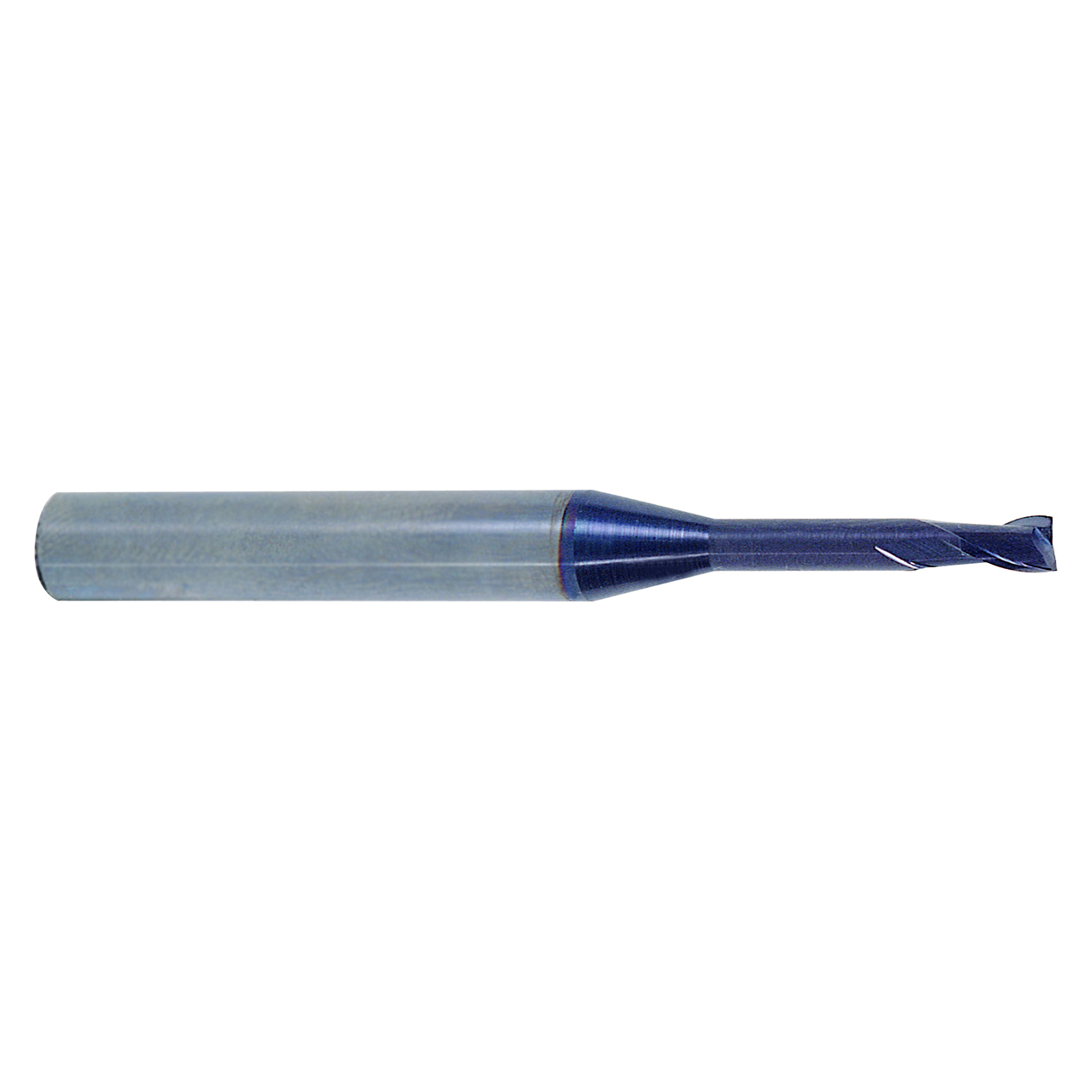

Product Specifications
| EDP Number | EM883979 |
| Diameter (Decimal Inch) | 0.1200" |
| Diameter (Inch) | 2/17" |
| Diameter (mm) | 3.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.1772" |
| Length of Cut (Inch) | 14/79" |
| Length of Cut (mm) | 4.50mm |
| Length Below Shank (Decimal Inch) | 0.7087" |
| Length Below Shank (Inch) | 17/24" |
| Length Below Shank (mm) | 18.00mm |
| Overall Length (Decimal Inch) | 2.1654" |
| Overall Length (mm) | 55.00mm |
| Overall Length (Inch) | 2-1/6" |
| Neck Diameter (Decimal Inch) | 0.1122" |
| Neck Diameter (Inch) | 11/98" |
| Neck Diameter (mm) | 2.85mm |
| Number of Flutes | 2 |
| Series | EM883 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Square End Mill |
