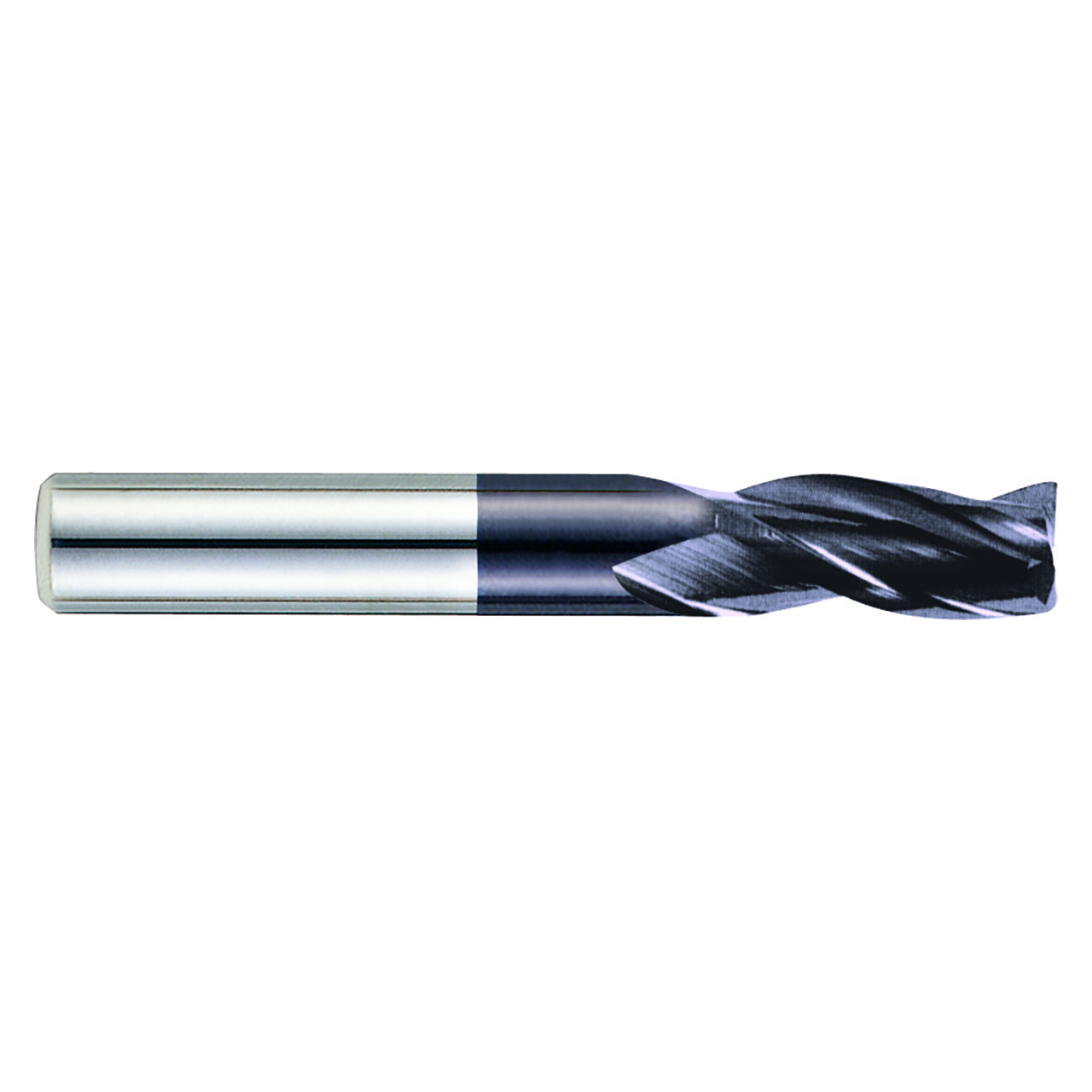

Product Specifications
| EDP Number | EM895035 |
| Diameter (Decimal Inch) | 0.1400" |
| Diameter (Inch) | 4/29" |
| Diameter (mm) | 3.50mm |
| Shank Diameter (Decimal Inch) | 0.1575" |
| Shank Diameter (Inch) | 3/19" |
| Shank Diameter (mm) | 4.00mm |
| Length of Cut (Decimal Inch) | 0.4724" |
| Length of Cut (Inch) | 43/91" |
| Length of Cut (mm) | 12.00mm |
| Overall Length (Decimal Inch) | 1.9685" |
| Overall Length (mm) | 50.00mm |
| Overall Length (Inch) | 1-31/32" |
| Number of Flutes | 3 |
| Series | EM895 |
| Helix Angle (Degree) | 38 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Short |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Square End Mill |
