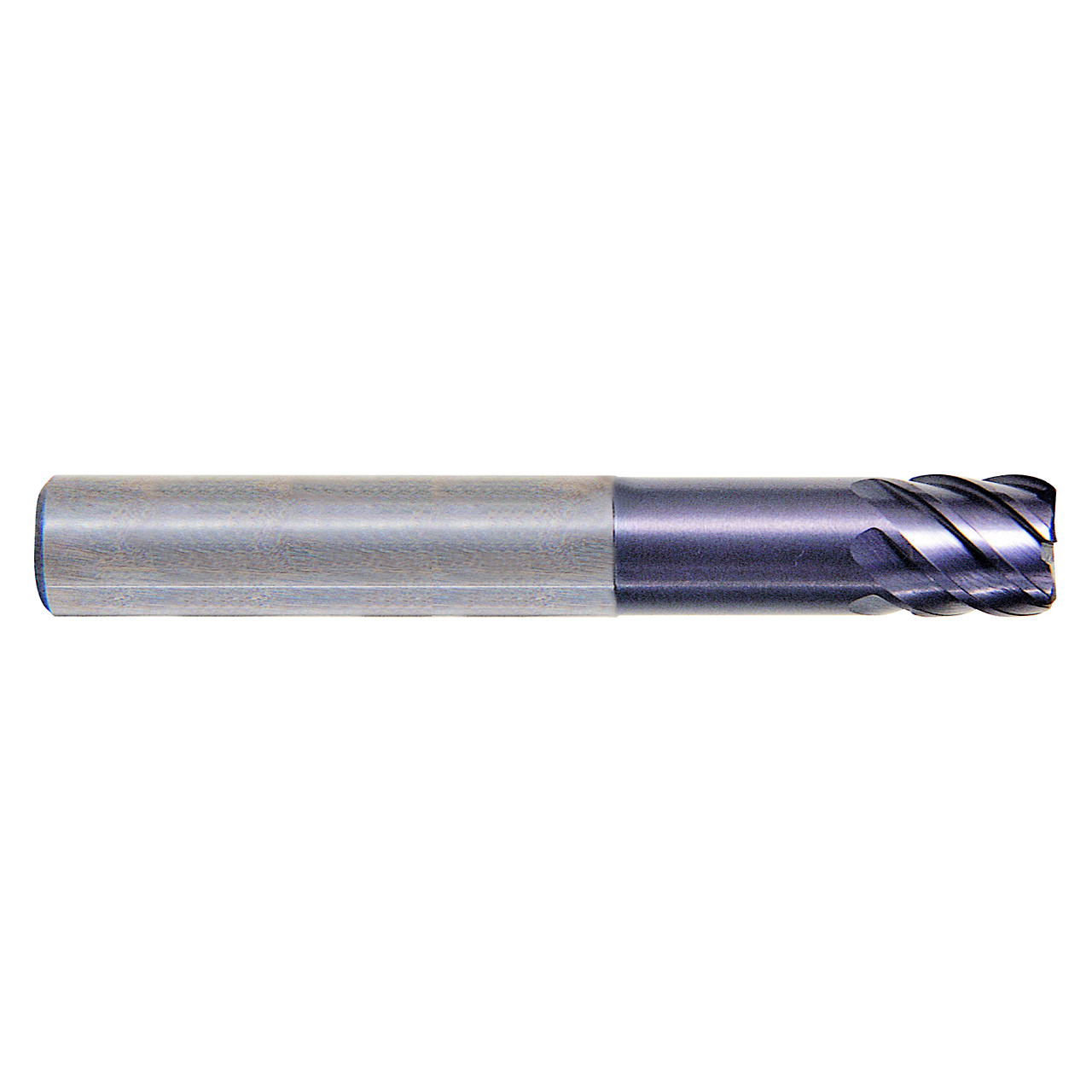

Product Specifications
| EDP Number | EM897120 |
| Diameter (Decimal Inch) | 0.4700" |
| Diameter (Inch) | 43/91" |
| Diameter (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.4724" |
| Shank Diameter (Inch) | 43/91" |
| Shank Diameter (mm) | 12.00mm |
| Length of Cut (Decimal Inch) | 0.4724" |
| Length of Cut (Inch) | 43/91" |
| Length of Cut (mm) | 12.00mm |
| Length Below Shank (Decimal Inch) | 1.1811" |
| Length Below Shank (Inch) | 1-2/11" |
| Length Below Shank (mm) | 30.00mm |
| Overall Length (Decimal Inch) | 2.9528" |
| Overall Length (mm) | 75.00mm |
| Corner Radius (Decimal Inch) | 0.0394" |
| Corner Radius (Inch) | 3/76" |
| Corner Radius (mm) | 1.00mm |
| Overall Length (Inch) | 2-20/21" |
| Neck Diameter (Decimal Inch) | 0.4567" |
| Neck Diameter (Inch) | 21/46" |
| Neck Diameter (mm) | 11.60mm |
| Number of Flutes | 6 |
| Series | EM897 |
| Helix Angle (Degree) | 45 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Stub Length |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Corner Radius End Mill |
