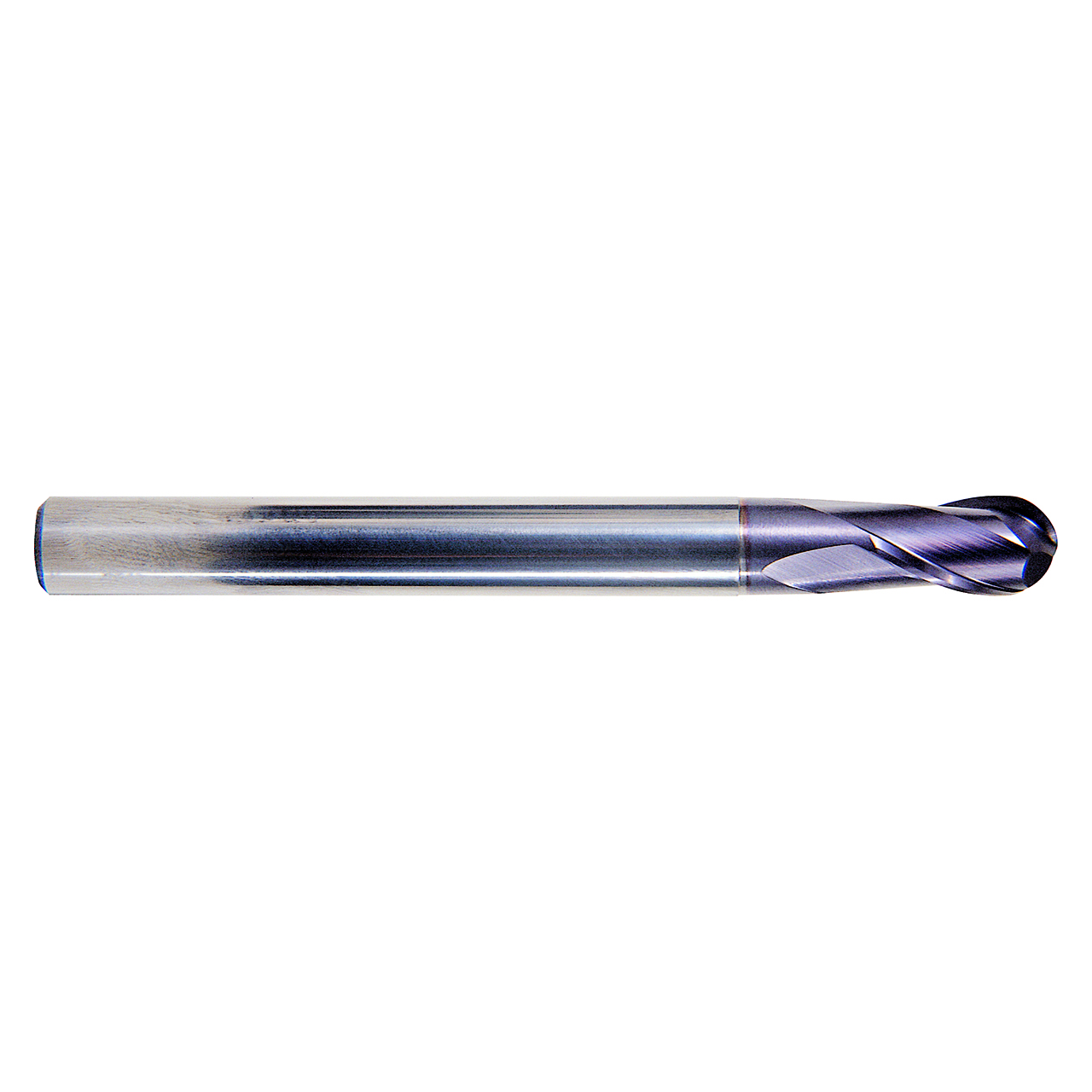

Product Specifications
| EDP Number | EM899120 |
| Diameter (Decimal Inch) | 0.4700" |
| Diameter (Inch) | 43/91" |
| Diameter (mm) | 12.00mm |
| Shank Diameter (Decimal Inch) | 0.4724" |
| Shank Diameter (Inch) | 43/91" |
| Shank Diameter (mm) | 12.00mm |
| Length of Cut (Decimal Inch) | 0.8661" |
| Length of Cut (Inch) | 13/15" |
| Length of Cut (mm) | 22.00mm |
| Length Below Shank (Decimal Inch) | 1.3780" |
| Length Below Shank (Inch) | 1-17/45" |
| Length Below Shank (mm) | 35.00mm |
| Overall Length (Decimal Inch) | 4.3307" |
| Overall Length (mm) | 110.00mm |
| Ball Nose Radius (Decimal Inch) | 0.2362" |
| Ball Nose Radius (Inch) | 13/55" |
| Overall Length (Inch) | 4-1/3" |
| Neck Diameter (Decimal Inch) | 0.4646" |
| Ball Nose Radius (mm) | 6.00mm |
| Neck Diameter (Inch) | 46/99" |
| Neck Diameter (mm) | 11.80mm |
| Number of Flutes | 2 |
| Series | EM899 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Length Type | Medium |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Ball Nose End Mill |
