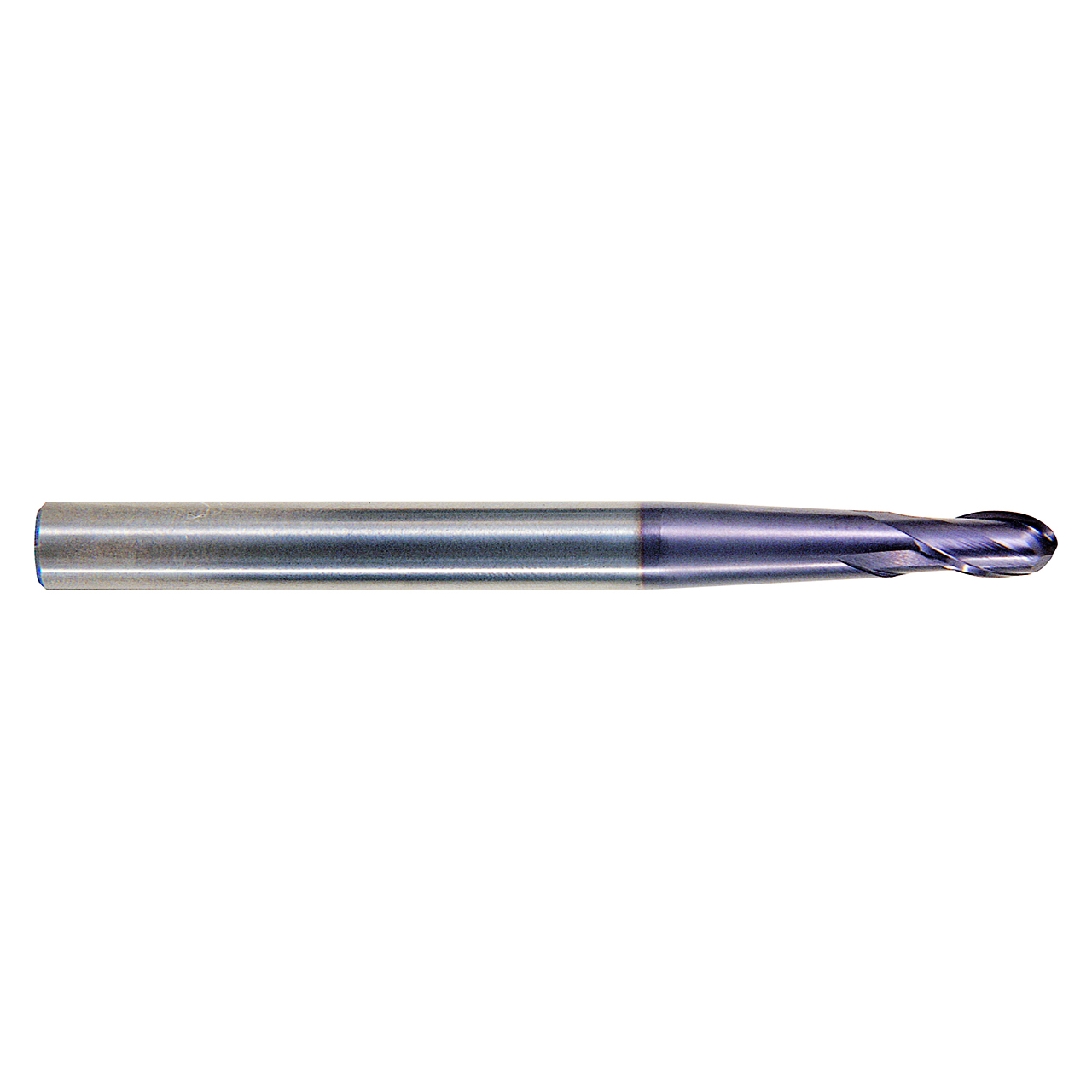

Product Specifications
| EDP Number | EM902902 |
| Diameter (Decimal Inch) | 0.0400" |
| Diameter (Inch) | 3/76" |
| Diameter (mm) | 1.00mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (Inch) | 13/55" |
| Shank Diameter (mm) | 6.00mm |
| Length of Cut (Decimal Inch) | 0.0787" |
| Length of Cut (Inch) | 3/38" |
| Length of Cut (mm) | 2.00mm |
| Length Below Shank (Decimal Inch) | 1.6535" |
| Length Below Shank (Inch) | 1-17/26" |
| Length Below Shank (mm) | 42.00mm |
| Overall Length (Decimal Inch) | 3.1496" |
| Overall Length (mm) | 80.00mm |
| Ball Nose Radius (Decimal Inch) | 0.0197" |
| Ball Nose Radius (Inch) | 1/51" |
| Overall Length (Inch) | 3-3/20" |
| Neck Diameter (Decimal Inch) | 0.1969" |
| Ball Nose Radius (mm) | 0.50mm |
| Neck Diameter (Inch) | 12/61" |
| Neck Diameter (mm) | 5.mm |
| Under Neck Parallel (Decimal Inch) | 0.1575" |
| Under Neck Parallel (Inch) | 3/19" |
| Under Neck Parallel (mm) | 4.00mm |
| Number of Flutes | 2 |
| Neck Taper Angle (Degree) | 3 Degree |
| Series | EM902 |
| Helix Angle (Degree) | 30 Degree |
| Shank Style | Plain |
| Coating | ALTiN |
| Cut Type | Center Cut |
| Material | Carbide |
| Cutting Direction | Right |
| Application | P |
| Produce Type | Taper Neck Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Finish/Coating:
ALTiN
Cutting Direction:
Right
Helix Angle:
30 Degree
Application:
P
interval quantity:
1
