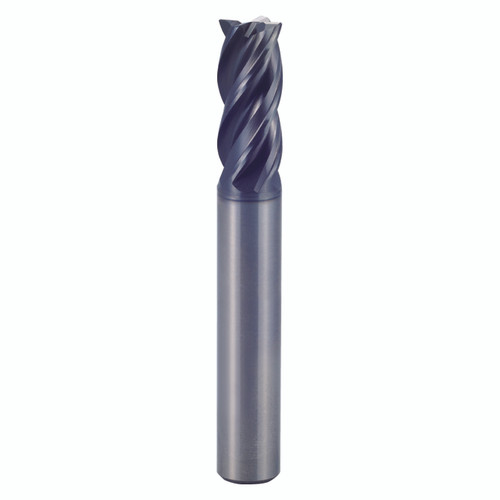

YG1 EMB41030 | 0.1181" Diameter x 0.2362" Shank x 2.1260" OAL x 0.2756" LOC 4 Flute AlTiN Coated Carbide Square End Mill

$12.35
SKU:
25052252
Weight:
0.05 LBS
Shipping:
Calculated at Checkout

Product Specifications
# Manufacturer NumberEMB41030
Diameter (Decimal Inch)0.1181"
Diameter (Inch)2/17"
Diameter (mm)3.00mm
Shank Diameter (Decimal Inch)0.2362"
Shank Diameter (Inch)13/55"
Shank Diameter (mm)6.00mm
Length og Cut (Decimal Inch)0.2756"
Length og Cut (Inch)8/29"
Length og Cut (mm)7.00mm
Overall Length (Decimal Inch)2.1260"
Overall Length (Inch)2-1/8"
Overall Length (mm)54.00mm
Number of Flutes4
Shank StylePlain
Helix AngleVariable
CoatingAlTiN
MaterialCarbide
Cut TypeCenter
SeriesEMB41
ApplicationPMS
Cutting DirectionRight
Length TypeShort
Product TypeSquare End Mill
